Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Power Door Locks - Inoperative - One Motor
Power Door Locks - Inoperative - One Motor

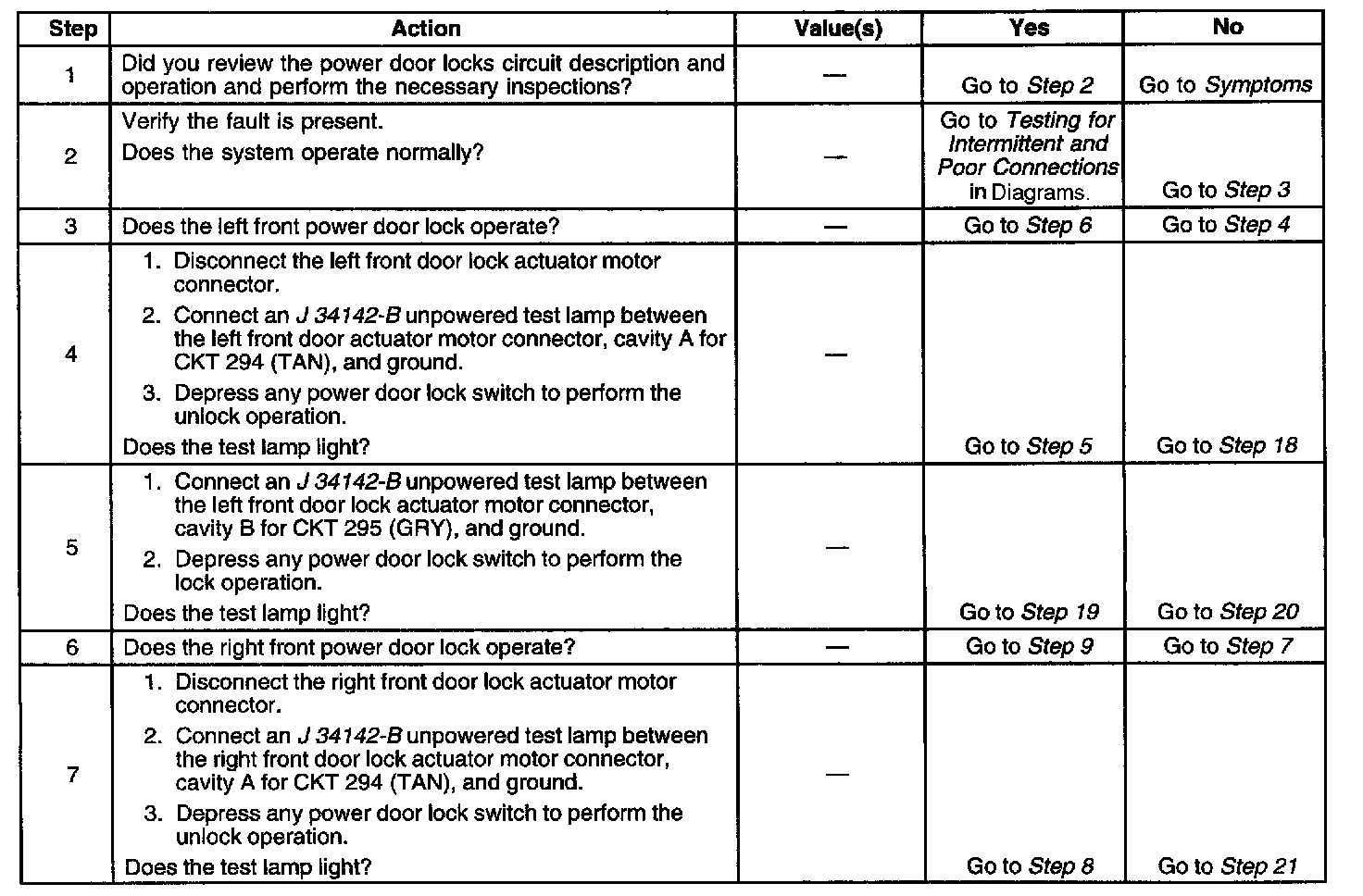

Diagnostic Chart (Part 1 Of 3):

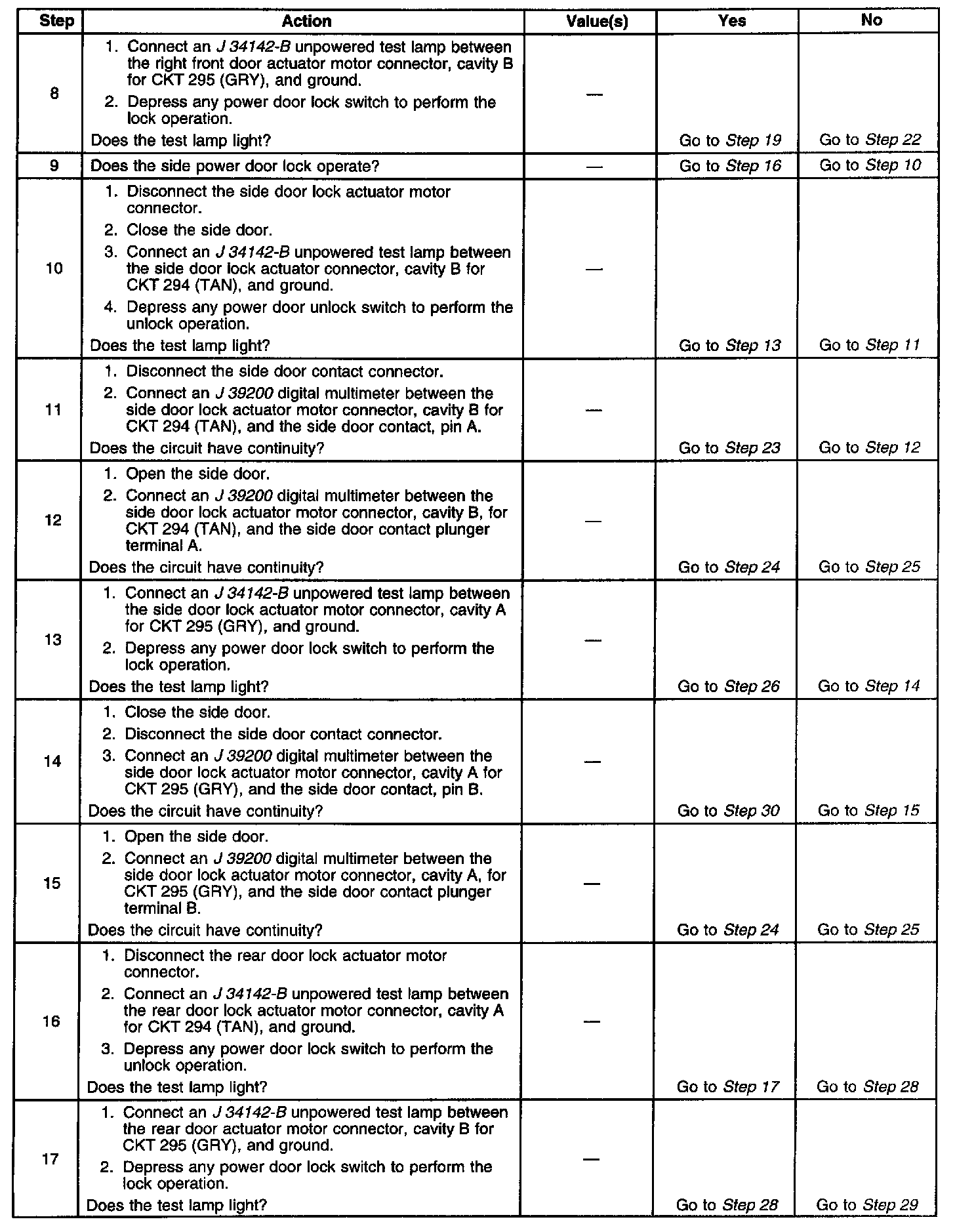

Diagnostic Chart (Part 2 Of 3):

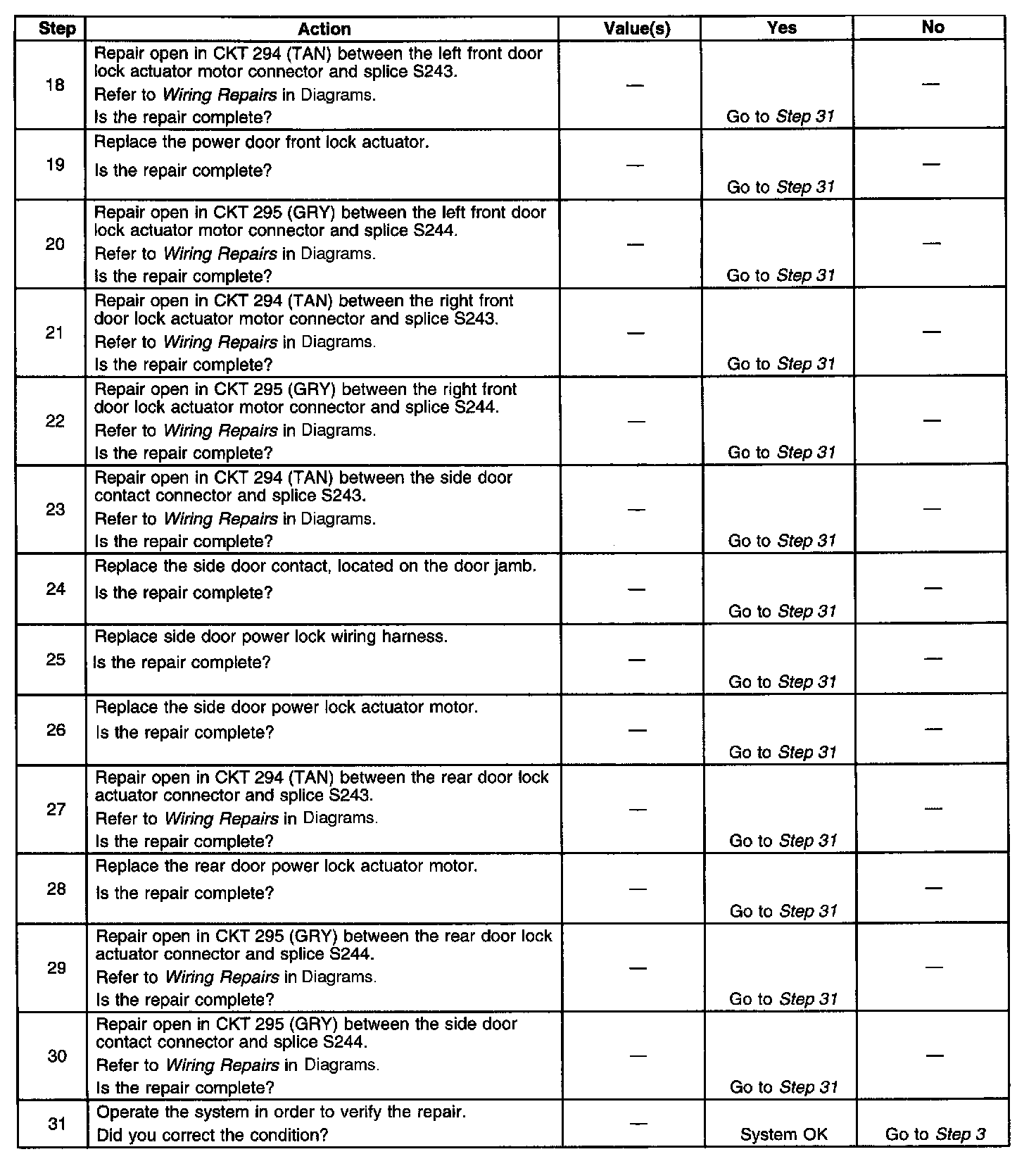

Diagnostic Chart (Part 3 Of 3):
