Rear Power Door Lock Switch
Rear Power Door Lock Switch

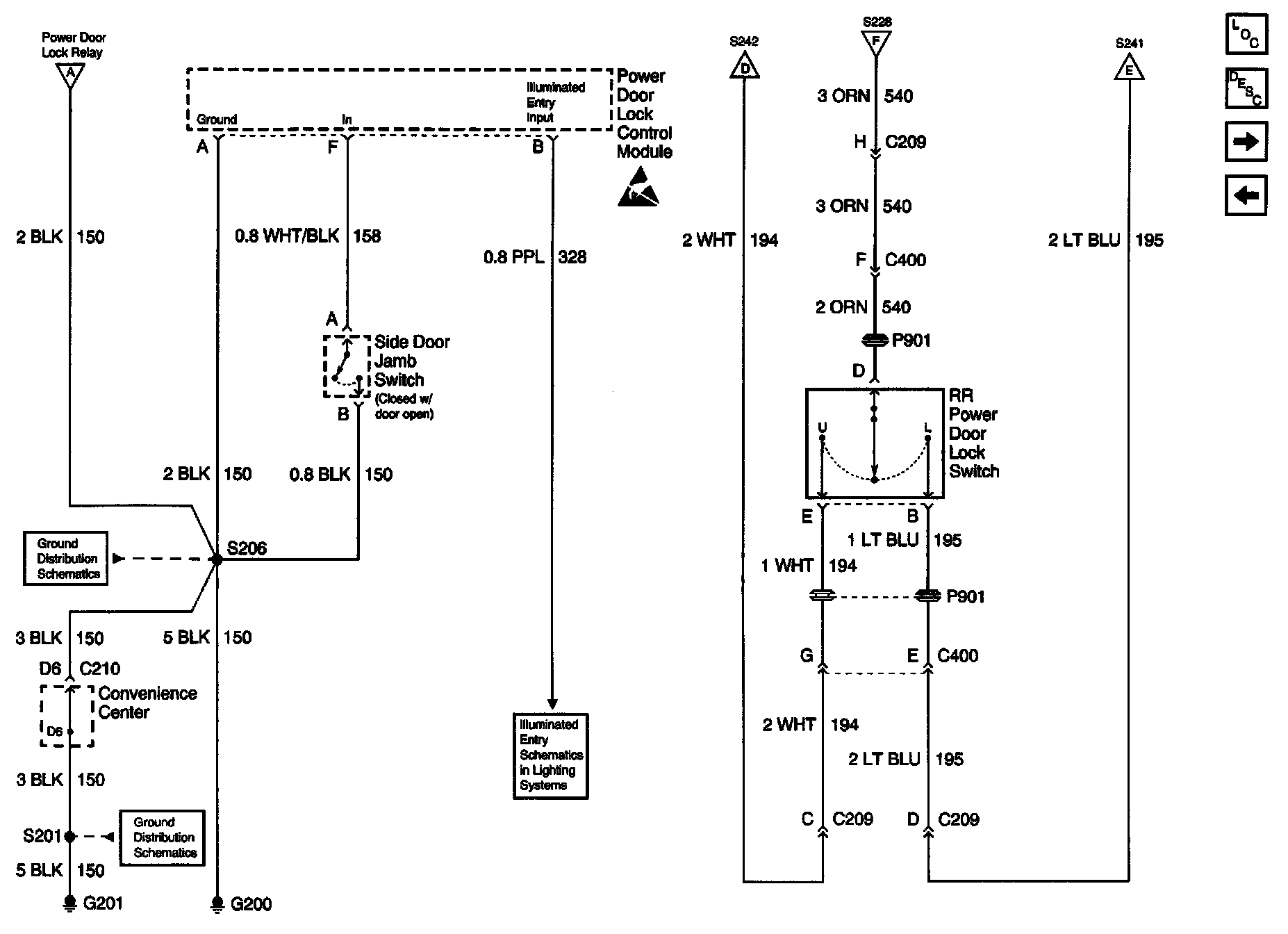

Door Lock/Indicator Schematics: Rear Power Door Lock Switch:
