Door Lock Cylinder Replacement (Side and Rear Door)

Door Lock Cylinder Replacement (Side and Rear Door)

Removal Procedure

1. Remove the side front door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .
2. Remove the side front door outside handle. Refer to Door Outside Handle Replacement (Service and Repair) .

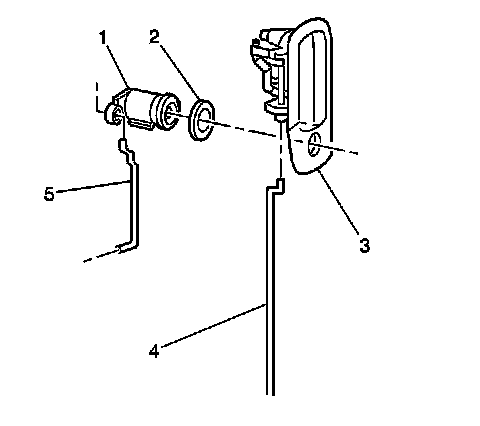

3. Remove the clip that retains the lock cylinder lever to the lock cylinder (1).
4. Press the lock cylinder, from outside the vehicle, through the side front door outside handle (3).
5. Remove the lock cylinder (1) from the side front door outside handle (3).



Installation Procedure





1. Press the lock cylinder (1) into the handle (3) in order to engage the lock cylinder retainer.
2. Install the clip that retains the lock cylinder lever to the lock cylinder (1).
3. Install the side front door outside handle. Refer to Door Outside Handle Replacement (Service and Repair) .
4. Install the side front door trim panel. Refer to Front Side Door Trim Panel Replacement (Service and Repair) .
