Front Side Door Opening Frame Garnish Molding Replacement

Front Side Door Opening Frame Garnish Molding

Removal Procedure

1. Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement (Windshield Garnish Molding Replacement) .

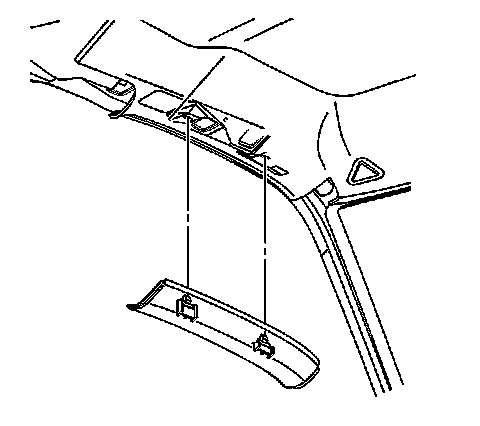

2. Grasp and gently pull the front door opening upper frame garnish molding in order to release the retaining clips.
3. Remove the front door opening upper frame garnish molding from the vehicle.
4. Inspect the front door opening upper frame garnish molding for broken or missing retaining clips. Replace the clips as needed.



Installation Procedure





1. Install the front door opening upper frame garnish molding to the vehicle.
2. Press on the front door opening upper frame garnish molding in order to engage the retaining clips.
3. Install the windshield garnish molding. Refer to Windshield Garnish Molding Replacement (Windshield Garnish Molding Replacement) .
