Body Side Trim Panel Replacement - Right Side

Body Side Trim Panel Replacement - Right Side

Removal Procedure

1. Remove the rear passenger seats as needed. Refer to Rear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) .




2. Remove the passenger side rear corner trim panel. Refer toBody Rear Corner Trim Panel Replacement - Right Side (Body Rear Corner Trim Panel Replacement - Right Side) .

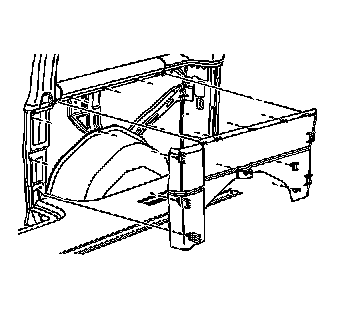

3. Grasp and gently pull the passenger side body side trim panel in order to disengage the retaining clips.
4. Remove the passenger side body side trim panel from the vehicle.
5. Inspect the passenger side body side trim panel for broken or missing retaining clips. Replace the clips as needed.



Installation Procedure





1. Install the passenger side body side trim panel to the vehicle.
2. Position the trim panel. Press on the trim panel in order to engage the retaining clips.
3. Install the passenger side rear corner trim panel. Refer to Body Rear Corner Trim Panel Replacement - Right Side (Body Rear Corner Trim Panel Replacement - Right Side) .
4. Install the rear passenger seats as needed. Refer toRear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) .
