Body Side Trim Panel Replacement - Left Side

Body Side Trim Panel Replacement - Left Side

Removal Procedure

1. Remove the rear passenger seats as needed. Refer toRear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) in Seats.




2. Remove the driver side body side rear trim panel. Refer to Body Side Rear Trim Panel Replacement (Body Side Rear Trim Panel Replacement) .
3. Remove the front door lower pillar garnish molding. Refer to Lower Pillar Garnish Molding Replacement (Lower Pillar Garnish Molding Replacement) .

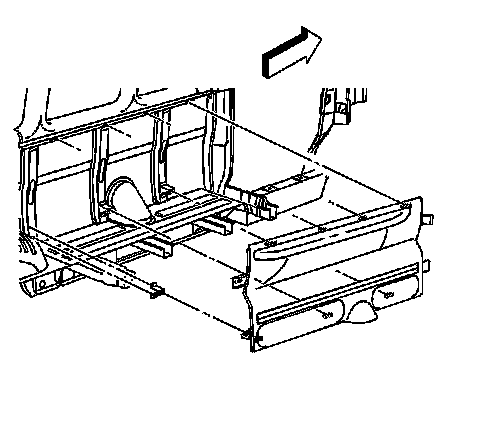

4. Grasp and gently pull the body side front lower trim panel in order to disengage the retainer clips.
5. Remove the body side front lower trim panel from the vehicle.
6. Inspect the body side front lower trim panel for broken or missing retaining clips. Replace the retaining clips as needed.



Installation Procedure





1. Install the body side front lower trim panel to the vehicle.
2. Press on the body side front lower trim panel in order to engage the retaining clips.
3. Install the front door lower pillar garnish molding. Refer to Lower Pillar Garnish Molding Replacement (Lower Pillar Garnish Molding Replacement) .
4. Install the driver side body side rear trim panel. Refer toBody Side Rear Trim Panel Replacement (Body Side Rear Trim Panel Replacement) .
5. Install the rear passenger seats when needed. Refer to Rear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) in Seats.
