Body Side Rear Trim Panel Replacement

Body Side Rear Trim Panel Replacement

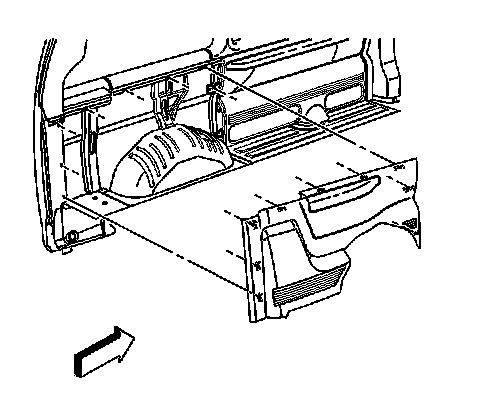

Removal Procedure

1. Remove the rear passenger seats as needed. Refer to Rear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) in Seats.




2. Grasp and gently pull the body side rear trim panel in order to disengage the retaining clips.
3. Remove the body side rear trim panel from the vehicle.
4. Inspect the body side rear trim panel for broken or missing retaining clips. Replace the retaining clips as needed.



Installation Procedure





1. Install the driver side body side rear trim panel to the vehicle.
2. Press on the driver side body side rear trim panel in order to engage the retaining clips.
3. Install the rear passenger seats as needed. Refer to Rear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) in Seats.
