Body Side Rear Garnish Molding Replacement

Body Side Rear Garnish Molding Replacement

Removal Procedure

1. Remove the body side trim panel. Refer to Body Side Rear Trim Panel Replacement (Body Side Rear Trim Panel Replacement) .

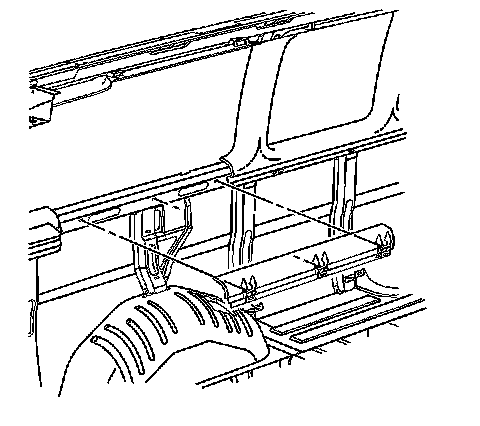

2. Grasp and gently pull the garnish molding in order to disengage the retaining clips.
3. Remove the body side rear lower garnish molding from the vehicle.
4. Inspect the body side rear lower garnish molding for broken or missing retaining clips. Replace the retaining clips as needed.



Installation Procedure





1. Install the body side rear lower garnish molding to the vehicle.
2. Press on the body side rear lower garnish molding in order to engage the retaining clips.
3. Install the body side trim panel. Refer to Body Side Rear Trim Panel Replacement (Body Side Rear Trim Panel Replacement) .
