Mat/Carpet Replacement - Rear Wheelhouse

Rear Wheelhouse Mat/Carpet Replacement

Removal Procedure

1. Remove the driver side body side rear trim panel as needed. Refer to Body Side Rear Trim Panel Replacement (Body Side Rear Trim Panel Replacement) .
2. Remove the passenger side body side trim panel as needed. Refer to Body Side Trim Panel Replacement - Right Side (Body Side Trim Panel Replacement - Right Side) .

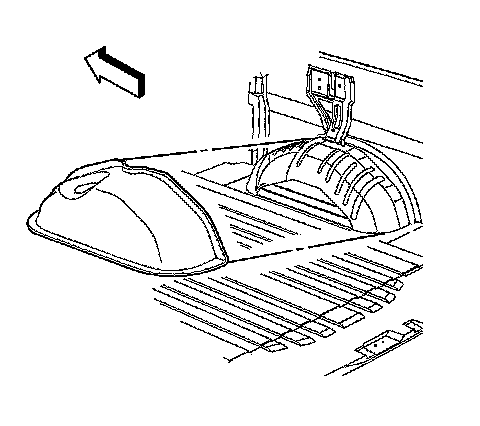

3. Remove the wheelhouse mat/carpet from the vehicle.



Installation Procedure






Caution: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

1. Install the wheelhouse mat/carpet to the vehicle.
2. Install the driver side body side rear trim panel. Refer to Body Side Rear Trim Panel Replacement (Body Side Rear Trim Panel Replacement) .
3. Install the passenger side body side trim panel. Refer to Body Side Trim Panel Replacement - Right Side (Body Side Trim Panel Replacement - Right Side) .
