Mat/Carpet Replacement - Rear Floor (Passenger Models)

Mat/Carpet Replacement - Rear Floor (Passenger Models)

Removal Procedure

1. Remove the rear passenger seats. Refer to Seat Replacement - Rear Bench (All Except Luxury) ()Seat Replacement - Rear Bench (Luxury Y91) () in Seats.
2. Remove the driver side body side rear trim panel. Refer to Trim Panel Replacement - Body Side Rear () .
3. Remove the driver side body side front trim panel. Refer to Trim Panel Replacement - Left Body Side () .
4. Remove the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side () .
5. Remove the rear floor carpet trim plate. Refer to Floor Trim Plate Replacement - Rear () in Body Rear End.
6. Remove the side door stepwell mat. Refer to Mat Replacement - Stepwell (Mat Replacement - Stepwell) .

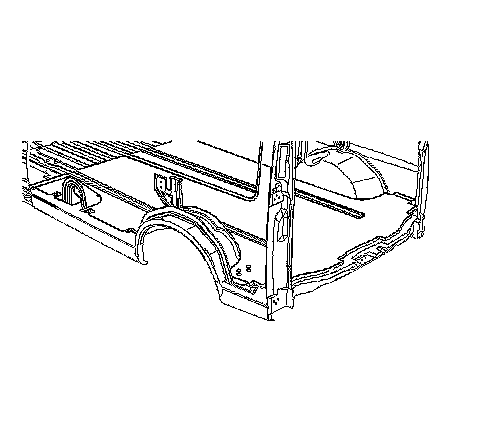

7. Remove the rear floor mat/carpet from the vehicle.



Installation Procedure





1. Install the rear floor mat/carpet to the vehicle.
2. Install the side door stepwell mat. Refer to Mat Replacement - Stepwell (Mat Replacement - Stepwell) .
3. Install the rear floor carpet trim plate. Refer to Floor Trim Plate Replacement - Rear () in Body Rear End.
4. Install the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side () .
5. Install the driver side body side front trim panel. Refer toTrim Panel Replacement - Left Body Side () .
6. Install the driver side body side rear trim panel. Refer to Trim Panel Replacement - Body Side Rear () .
7. Install the rear passenger seats. Refer to Seat Replacement - Rear Bench (All Except Luxury) ()Seat Replacement - Rear Bench (Luxury Y91) () in Seats.
