Mat/Carpet Replacement - Rear Floor (Cargo Models)

Rear Floor Mat/Carpet Replacement (Cargo Models)

Removal Procedure

1. Remove the rear passenger seats. Refer to Rear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) in Seats.
2. Remove the driver side body side rear trim panel. Refer to Body Side Rear Trim Panel Replacement (Body Side Rear Trim Panel Replacement) .
3. Remove the driver side body side front trim panel. Refer to Body Side Trim Panel Replacement - Left Side (Body Side Trim Panel Replacement - Left Side) .
4. Remove the passenger side body side trim panel. Refer to Body Side Trim Panel Replacement - Right Side (Body Side Trim Panel Replacement - Right Side) .
5. Remove the rear floor carpet trim plate. Refer to Rear Floor Trim Plate Replacement (Service and Repair) in Body Rear End.
6. Remove the side door stepwell mat. Refer to Front Side Door Step Mat Replacement (Mat Replacement - Stepwell) .

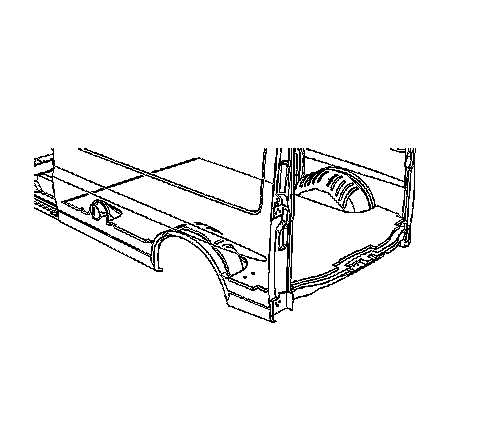

7. Remove the rear floor mat/carpet from the vehicle.



Installation Procedure


Caution: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

1. Install the rear floor mat/carpet to the vehicle.




2. Install the side door stepwell mat. Refer to Front Side Door Step Mat Replacement (Mat Replacement - Stepwell) .
3. Install the rear floor carpet trim plate. Refer to Rear Floor Trim Plate Replacement (Service and Repair) in Body Rear End.
4. Install the passenger side body side trim panel. Refer toBody Side Trim Panel Replacement - Right Side (Body Side Trim Panel Replacement - Right Side) .
5. Install the driver side body side front trim panel. Refer to Body Side Trim Panel Replacement - Left Side (Body Side Trim Panel Replacement - Left Side) .
6. Install the driver side body side rear trim panel. Refer to Body Side Rear Trim Panel Replacement (Body Side Rear Trim Panel Replacement) .
7. Install the rear passenger seats. Refer to Rear Bench Seat Replacement (All Except Luxury) (Rear Bench Seat Replacement (All Except Luxury)) in Seats.
