Front Floor Mat/Carpet Replacement

Front Floor Mat/Carpet Replacement

Removal Procedure

1. Remove the front seats. Refer toFront Seat Replacement - Bucket (Front Seat Replacement - Bucket) in Seats.
2. Remove the engine cover. Refer to Engine Cover Replacement (Engine Cover Replacement) .
3. Remove the hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement (Body Hinge Pillar Trim Panel Replacement) .




4. Remove the front door stepwell mat. Refer to Front Side Door Step Mat Replacement (Mat Replacement - Stepwell) .

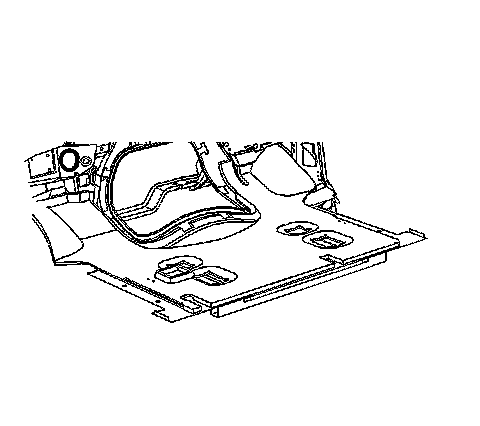

5. Remove the front floor mat/carpet from the vehicle.



Installation Procedure






Caution: In order to avoid personal injury or vehicle damage when you repair or replace the carpet, use the same thickness and material size as the original installation. Always return the carpet to the original location.

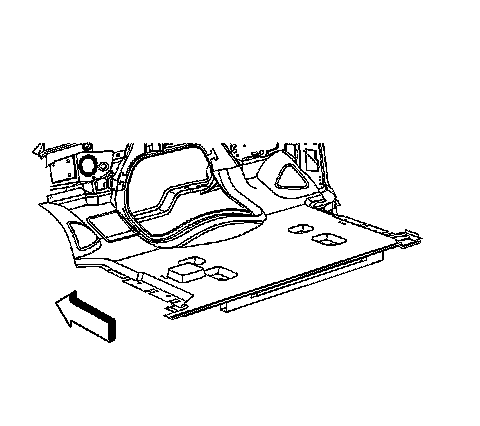

1. Install the front floor mat/carpet to the vehicle.
2. Install the front door stepwell mat. Refer to Front Side Door Step Mat Replacement (Mat Replacement - Stepwell) .




3. Install the hinge pillar trim panel. Refer to Body Hinge Pillar Trim Panel Replacement (Body Hinge Pillar Trim Panel Replacement) .
4. Install the engine cover. Refer to Engine Cover Replacement (Engine Cover Replacement) .
5. Install the front seats. Refer toFront Seat Replacement - Bucket (Front Seat Replacement - Bucket) in Seats.
