Body / Frame Mount Bushing: Service and Repair

Body Mount Replacement

Removal Procedure

1. Remove the screws retaining the fuel filter pipe to the body.
2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
3. Use jack stands in order to support the body of the vehicle.

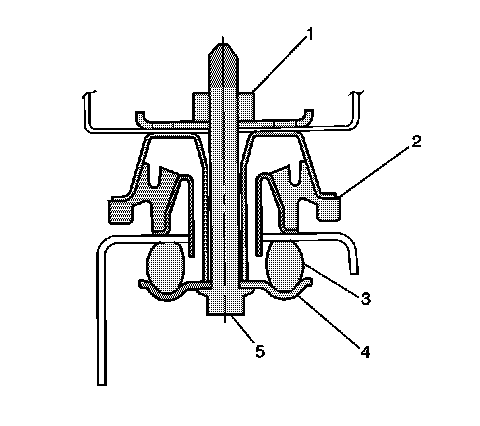

4. Release the brake line retainers closest to the first body mount (2) in order to ensure that the brake lines will not bend when you lower the frame.

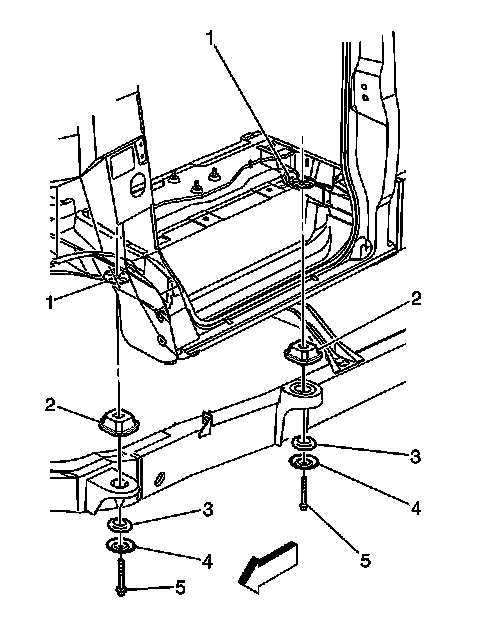

5. Loosen all the body mount bolts (5). Do not remove the bolts.




6. Remove the bolt (5) from the body mount.
7. Lower the frame slightly.
8. Remove the body mount from the frame.



Installation Procedure

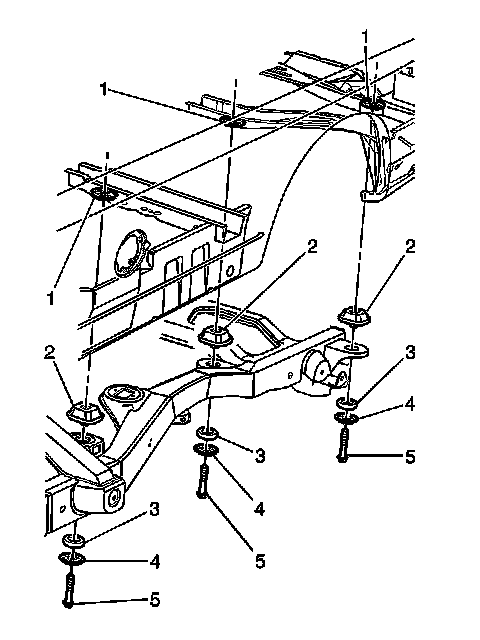

1. Install the body mount (2) to the frame.
2. Raise the frame.




3. Install the bolt (5) to the body mount.





Notice: Refer to Fastener Notice in Cautions and Notices.

4. Install the body mount bolts (5).

Tighten the body mount bolts to 85 N.m (63 lb ft).

5. Install the brake line retainers.
6. Remove the safety stands.
7. Lower the vehicle.
8. Install the screws retaining the fuel filler pipe to the body.
