Rear Fender Liner: Service and Repair

Wheelhouse Extension Replacement

Removal Procedure

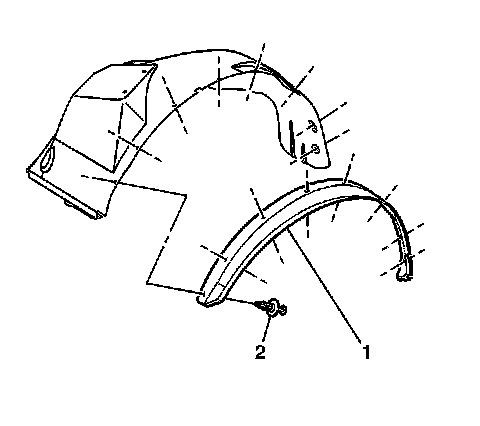

1. Remove the push-pin (2) retaining the wheelhouse extension (1) to the wheelhouse.
2. Remove the wheelhouse extension (1) from the wheelhouse.



Installation Procedure





1. Install the wheelhouse extension (1) to the wheelhouse.
2. Install the push- pin (2) in order to retain the wheelhouse extension (1) to the wheelhouse.
