Front Fender Liner: Service and Repair

Splash Shield Replacement - Wheelhouse

Removal Procedure

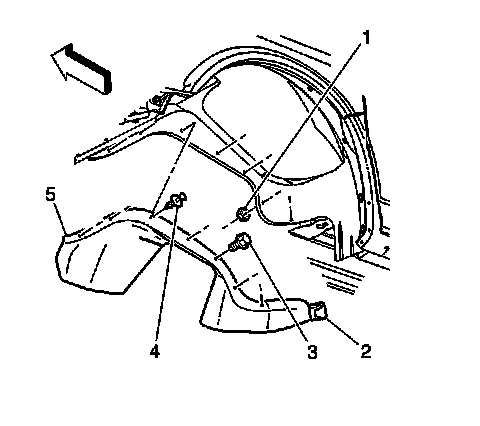

1. Remove the push pin retainers (4) retaining the splash shield (5) to the wheelhouse.
2. Remove the bolt (3) retaining the splash shield (5) to the wheelhouse.
3. Remove the clip (2) retaining the splash shield (5) to the rear of the wheelhouse.
4. Remove the splash shield (5) from the wheelhouse.



Installation Procedure





1. Install the splash shields (5) to the wheelhouse.
2. Install the clip (2) in order to retain the splash shield (5) to the rear of the wheelhouse.
3. Install the bolt (3) in order to retain the splash shield (5) to the wheelhouse.
4. Install the push pin retainers (4) in order to retain the splash shield to the wheelhouse.
