License Bracket Replacement - Front (Domestic)

Front License Plate Bracket Replacement (Domestic)

Removal Procedure

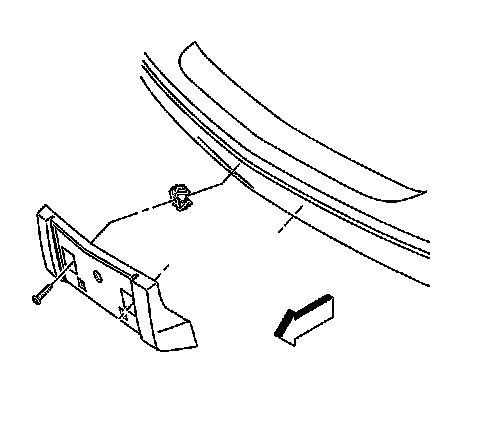

1. Remove the bolts that retain the front license plate bracket to the bumper.
2. Remove the front license plate bracket from the bumper.



Installation Procedure





1. Install the front license plate bracket to the bumper.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the front license plate bracket retaining bolts to the bumper.

Tighten the front license plate bracket retaining bolts to 3 N.m (27 lb in).
