Hood Weatherstrip: Service and Repair

Seal Replacement - Hood Rear

Removal Procedure

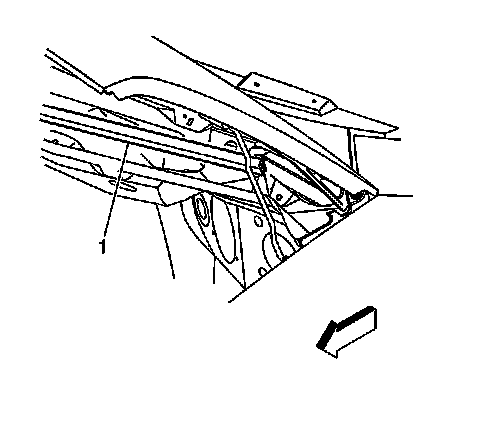

1. Pull up on the rear hood seal (1).
2. Remove the rear hood seal (1) from the cowl pinch weld flange.



Installation Procedure





1. Align the slot in the rear hood seal (1) with the cowl pinch weld flange.
2. Press the rear hood seal (1) into place.
