Sliding Door Electrical Contact: Service and Repair

Contact Plate Replacement - Sliding Door Jamb

Removal Procedure

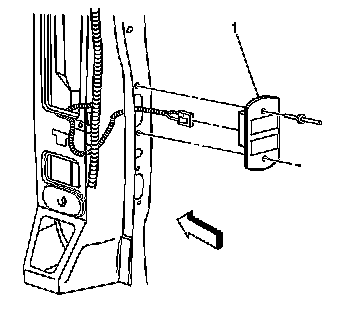

1. Remove the rivets, that retain the contact plate (1) to the door jamb, using an appropriate drill and drill bit.
2. Remove the contact plate (1) from the door jamb.
3. Remove the electrical connector from the contact plate.



Installation Procedure





1. Install the electrical connector to the contact plate (1).
2. Install the contact plate (1) to the door jamb
3. Install the rivets that retain the contact plate to the door jamb with a rivet gun.
