Center Sliding Door Roller: Service and Repair

Roller Bracket Replacement - Center

Removal Procedure





1. Remove the sliding side door lower trim panel. Refer to Trim Panel Replacement - Sliding Door Lower (Trim Panel Replacement - Sliding Door Lower) .
2. Remove the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side. Service and Repair
3. Remove the sliding side door stop. Refer to Sliding Door Stop Replacement (Sliding Door Stop Replacement) .

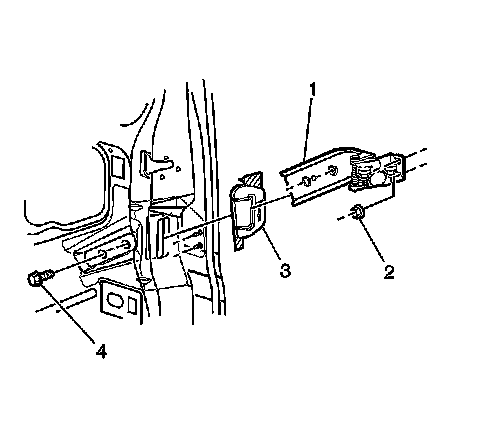

4. Remove the bolts (4) that retain the sliding side door center roller bracket (1) to the door.
5. Remove the nuts (2) that retain the sliding side door center roller bracket (1) to the door.
6. Slide the sliding side door center roller bracket (1) from the rear of the track.
7. Remove the sliding side door center roller bracket (1) from the vehicle.



Installation Procedure





1. Install the sliding side door center roller bracket (1) to the vehicle.
2. Slide the sliding side door center roller bracket (1) into the rear of the track.

Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the nuts (2) in order to retain the sliding side door center roller bracket (1) to the door.

Tighten the retaining nuts to 25 N.m (18 lb ft).

4. Install the bolts (4) in order to retain the sliding side door center roller bracket (1) to the door.

Tighten the retaining bolts to 25 N.m (18 lb ft).

5. Install the sliding side door stop. Refer to Sliding Door Stop Replacement (Sliding Door Stop Replacement) .
6. Install the passenger side body side trim panel. Refer to Trim Panel Replacement - Right Body Side. Service and Repair
7. Install the sliding side door lower trim panel. Refer to Trim Panel Replacement - Sliding Door Lower (Trim Panel Replacement - Sliding Door Lower) .
