Wiring Harness Replacement - Door

Door Wiring Harness Replacement

Removal Procedure





1. Remove the rear door trim panel. Refer to Rear Door Trim Panel Replacement (Left) (Rear Door Trim Panel Replacement (Left))Rear Door Trim Panel Replacement (Right) (Rear Door Trim Panel Replacement (Right)) .

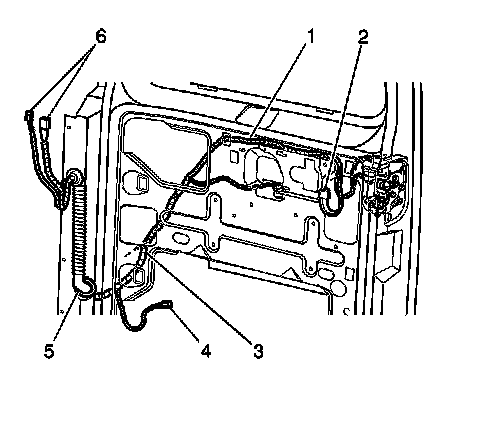

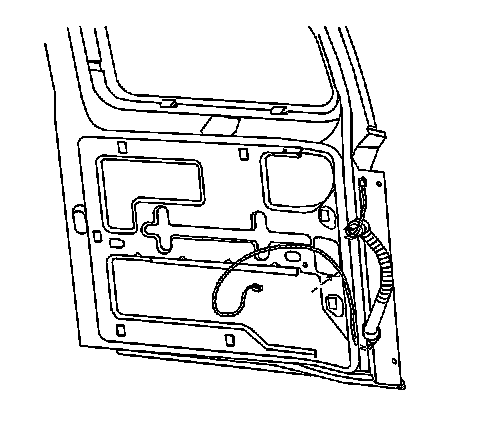

2. Remove the electrical connectors (5) from the lock and the rear door speakers (if equipped).
3. Remove the wiring harness retainers (3) from the door.




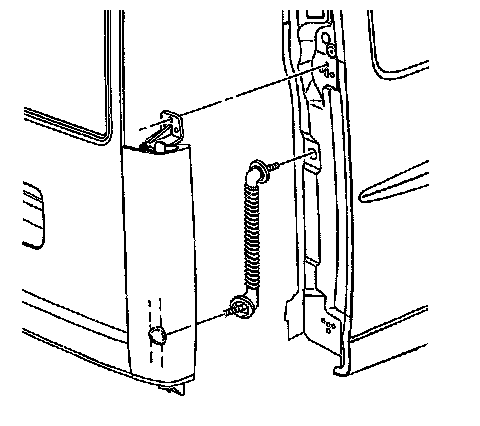

4. Remove the wiring harness conduit from the door.




5. Remove the wiring harness from the door.



Installation Procedure





1. Install the wiring harness to the door.




2. Install the wiring harness conduit to the door.




3. Install the wiring harness retainers (3) to the door.
4. Install the electrical connectors (5) to the lock and the rear door speakers (if equipped).
5. Install the rear door trim panel. Refer to Rear Door Trim Panel Replacement (Left) (Rear Door Trim Panel Replacement (Left))Rear Door Trim Panel Replacement (Right) (Rear Door Trim Panel Replacement (Right)) .
