Door Stop: Service and Repair

Front Side Door Bumper Replacement

Removal Procedure





1. Open the door.

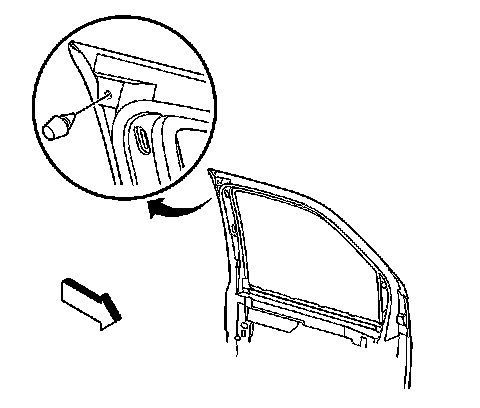

2. Gently pull the top front door bumper from the hole in the door.

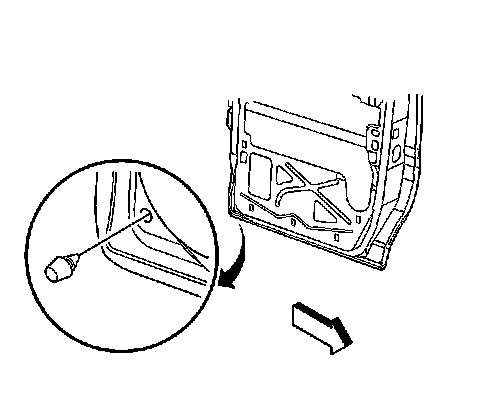

3. Gently pull the bottom front door bumper from the hole in the door.







Installation Procedure





1. Apply a mild soap to both the top and bottom bumpers.
2. Press the bottom front door bumper into the hole in the door.




3. Press the top front door bumper into the hole in the door.
4. Close the door.
