Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Speakers Inoperative or Distorted - Rear
Speakers Inoperative or Distorted - Rear

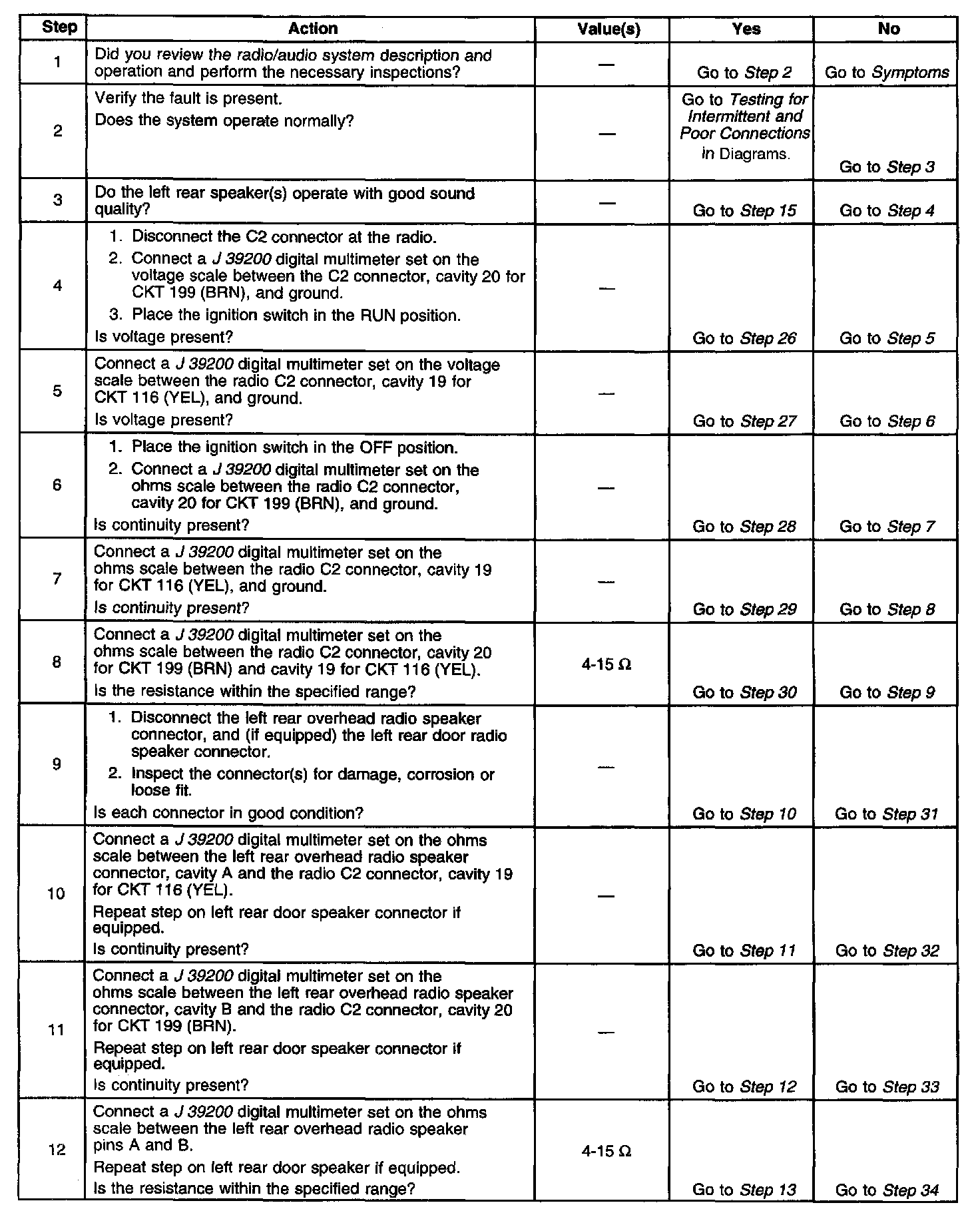

Diagnostic Chart (Part 1 Of 3):
Diagnostic Chart (Part 2 Of 3):

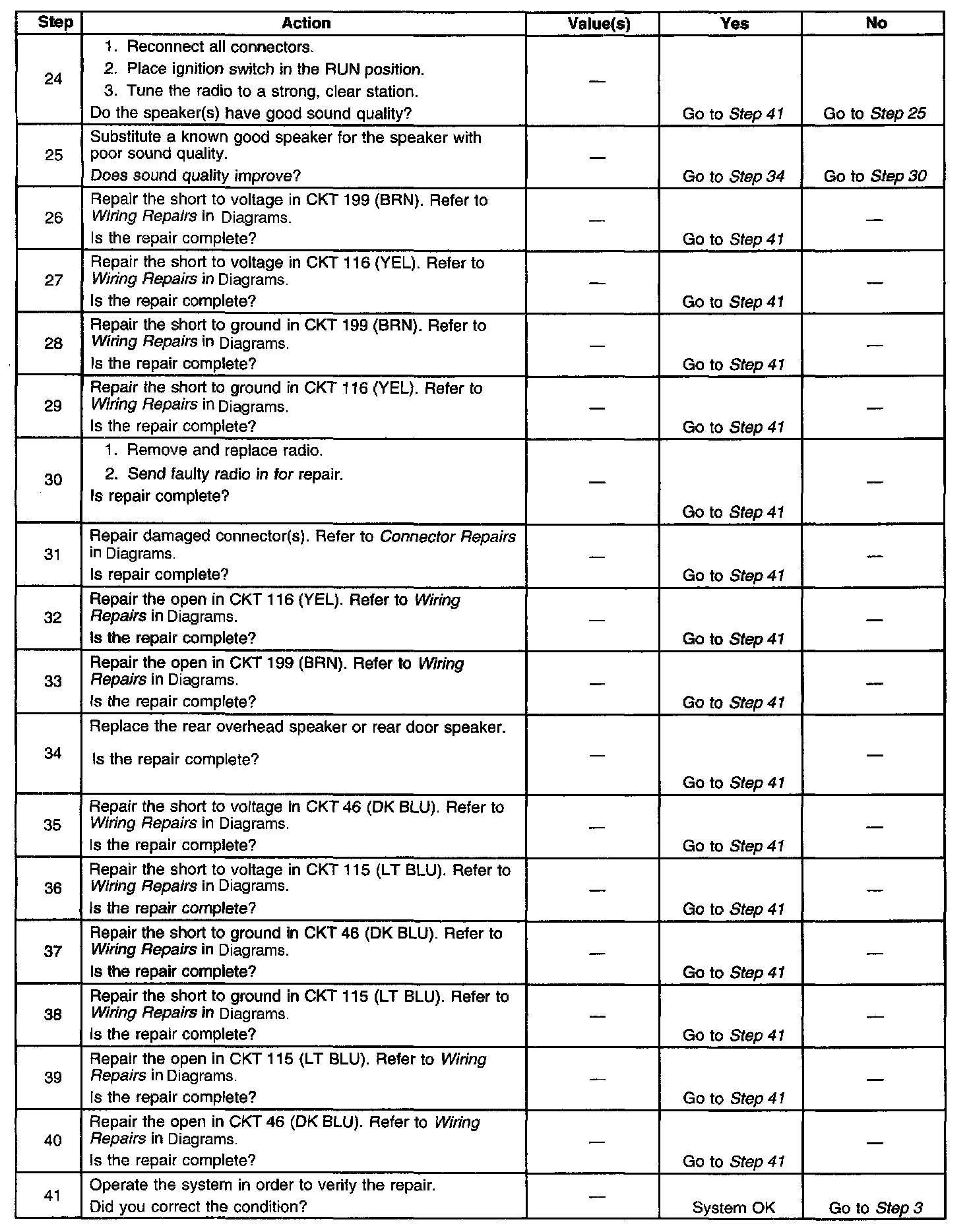

Diagnostic Chart (Part 3 Of 3):
