Speaker Replacement - Rear Door

REMOVAL PROCEDURE
1. Remove the rear door trim panel.

CAUTION: Eye protection must be worn when drilling rivets to reduce the chance of personal Injury.

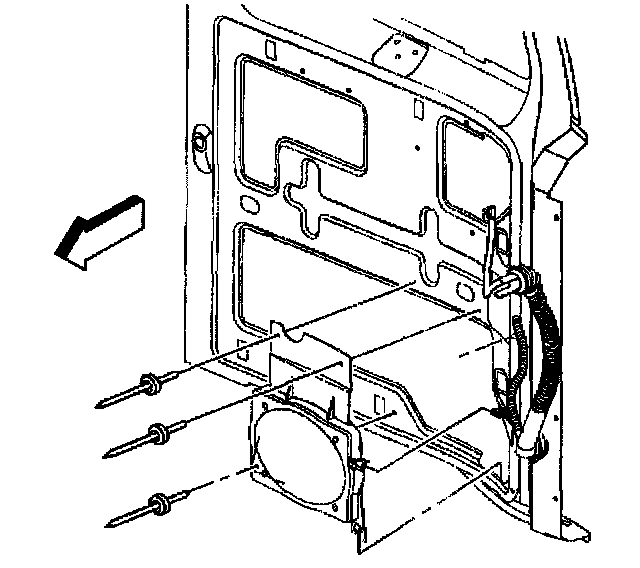

2. Remove the rivets retaining the rear door speaker/housing to the door using appropriate drill and drill bit.
3. Remove the speaker/housing from the door.
4. Disconnect the electrical connector from the speaker.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the speaker.
2. Install the speaker/housing to the door.
3. Install the rivets in order to retain the rear door speaker/housing to the door.
4. Install the rear door trim panel.
