Express 1/2 Ton Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Keyless Entry
>>
Diagrams
>>
Electrical Diagrams
>>
Power Feeds
Power Feeds

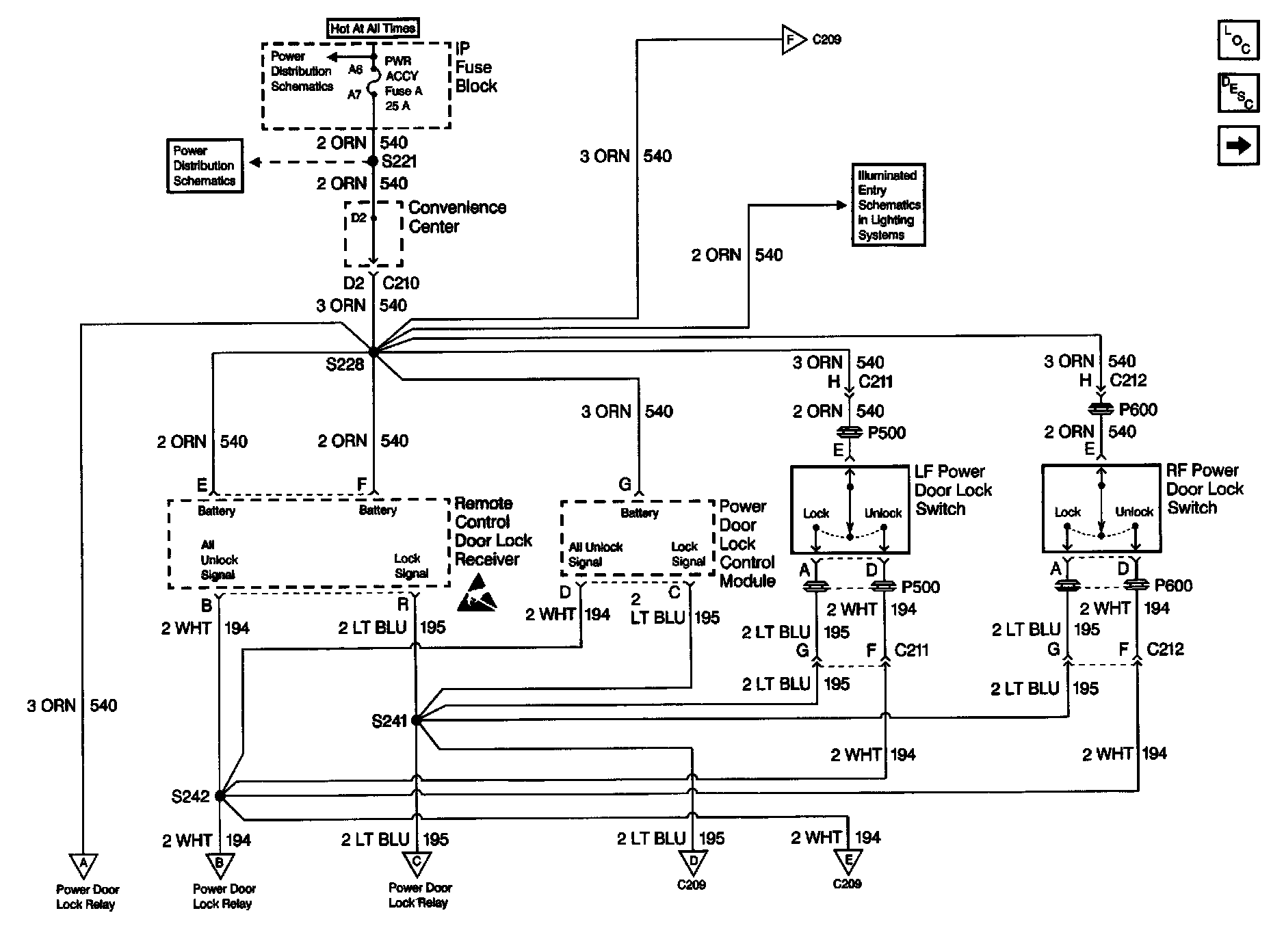

Keyless Entry Schematics: Power Feeds:
