P0410

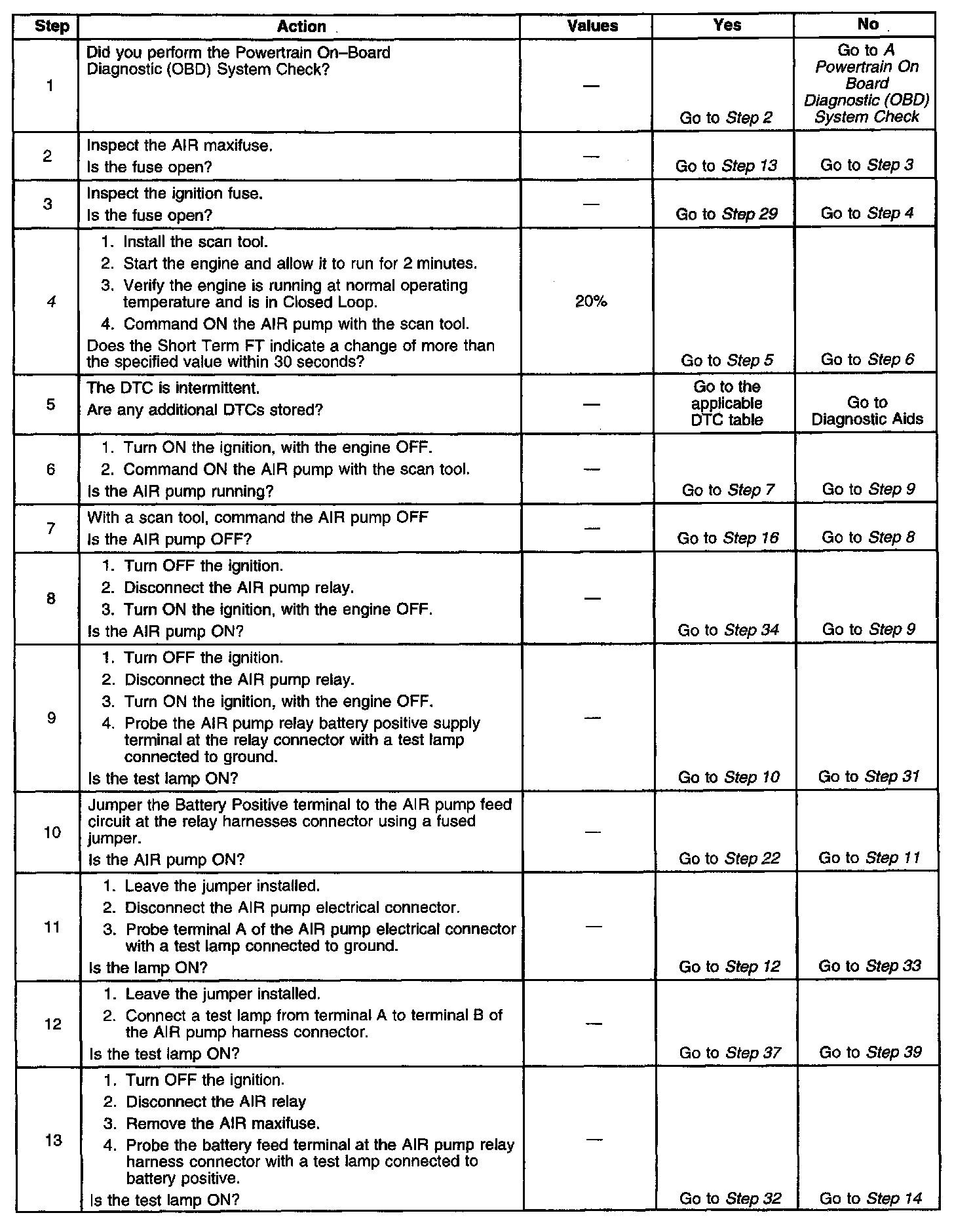

Diagnostic Chart (Part 1 Of 4):

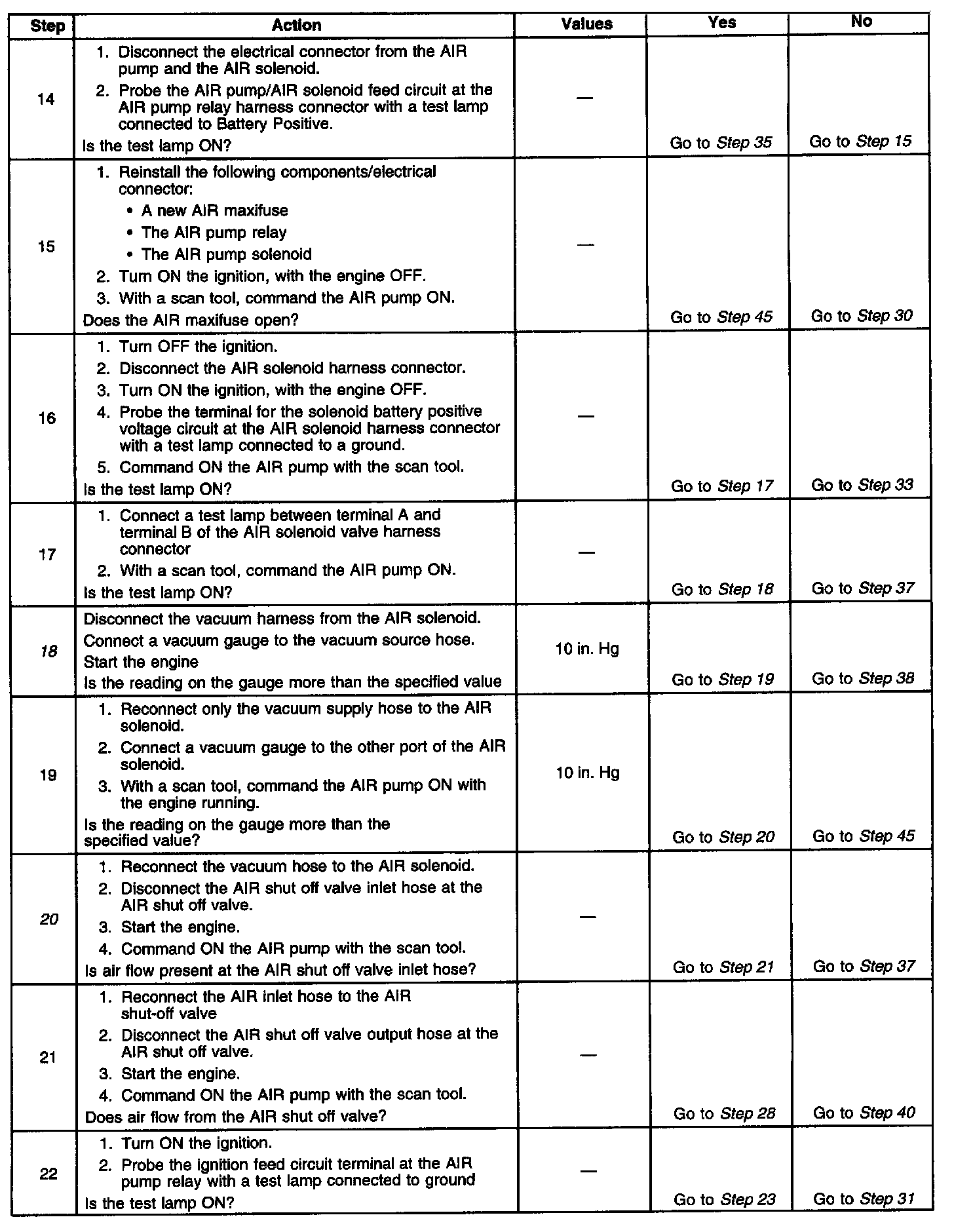

Diagnostic Chart (Part 2 Of 4):

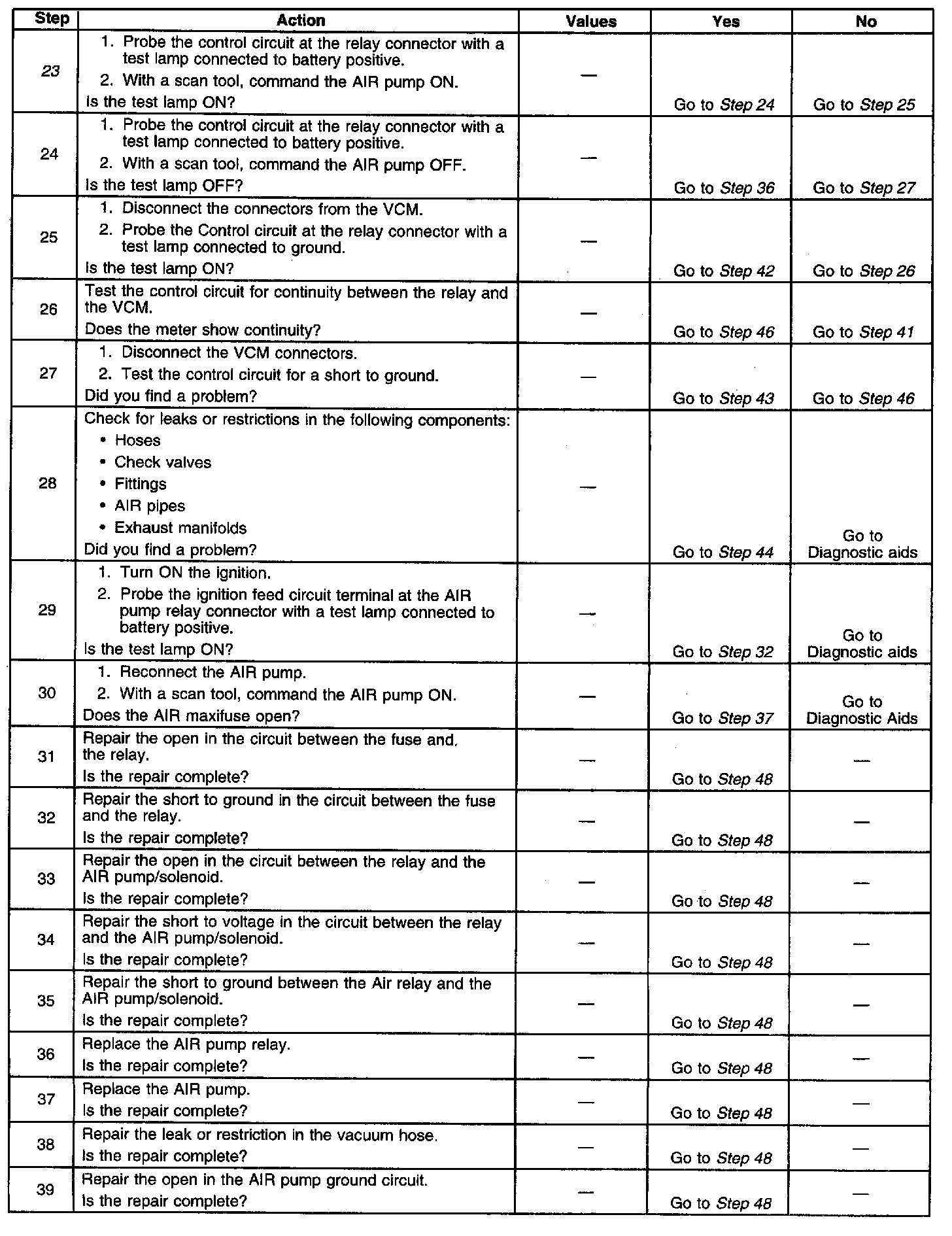

Diagnostic Chart (Part 3 Of 4):

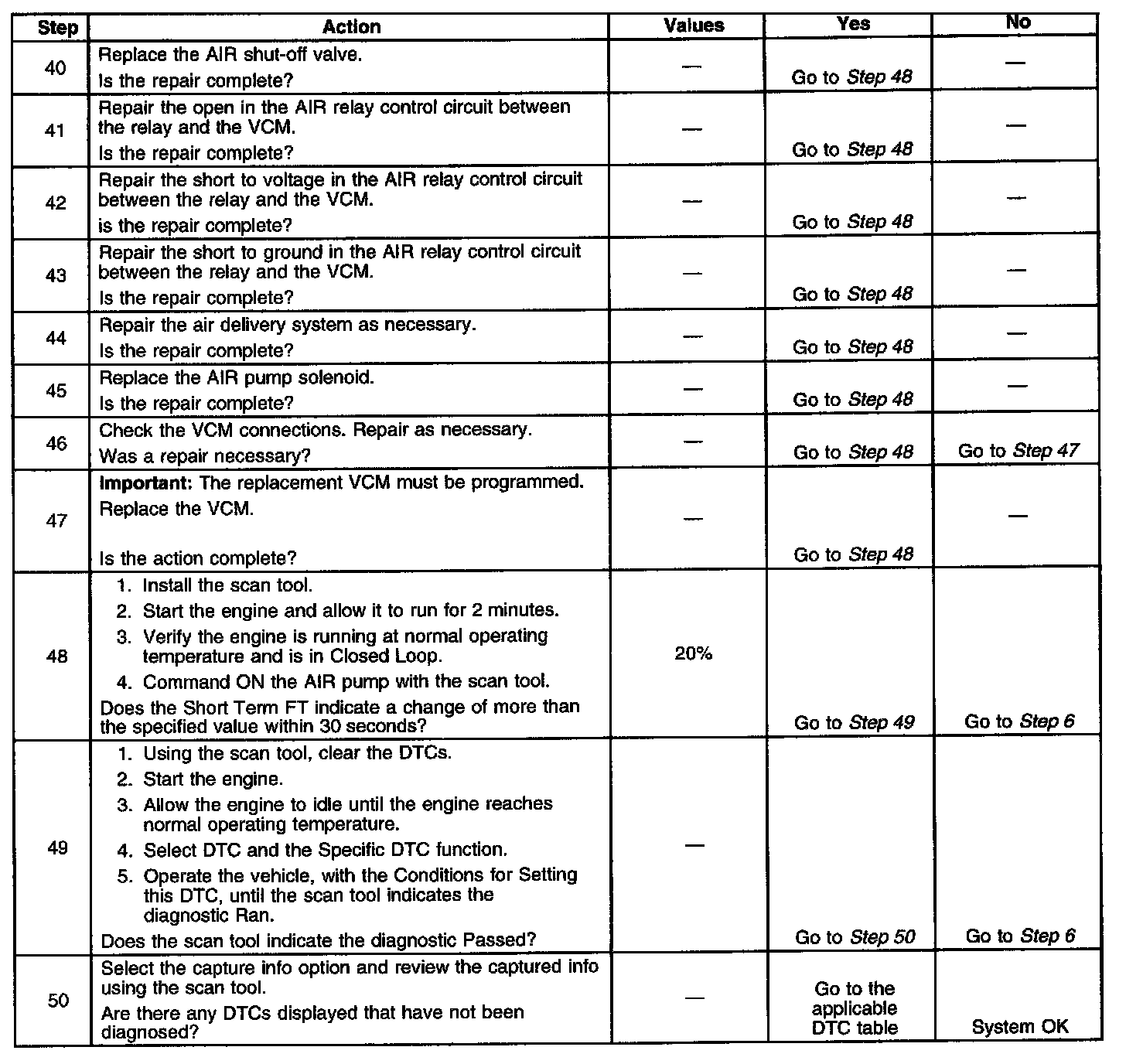

Diagnostic Chart (Part 4 Of 4):

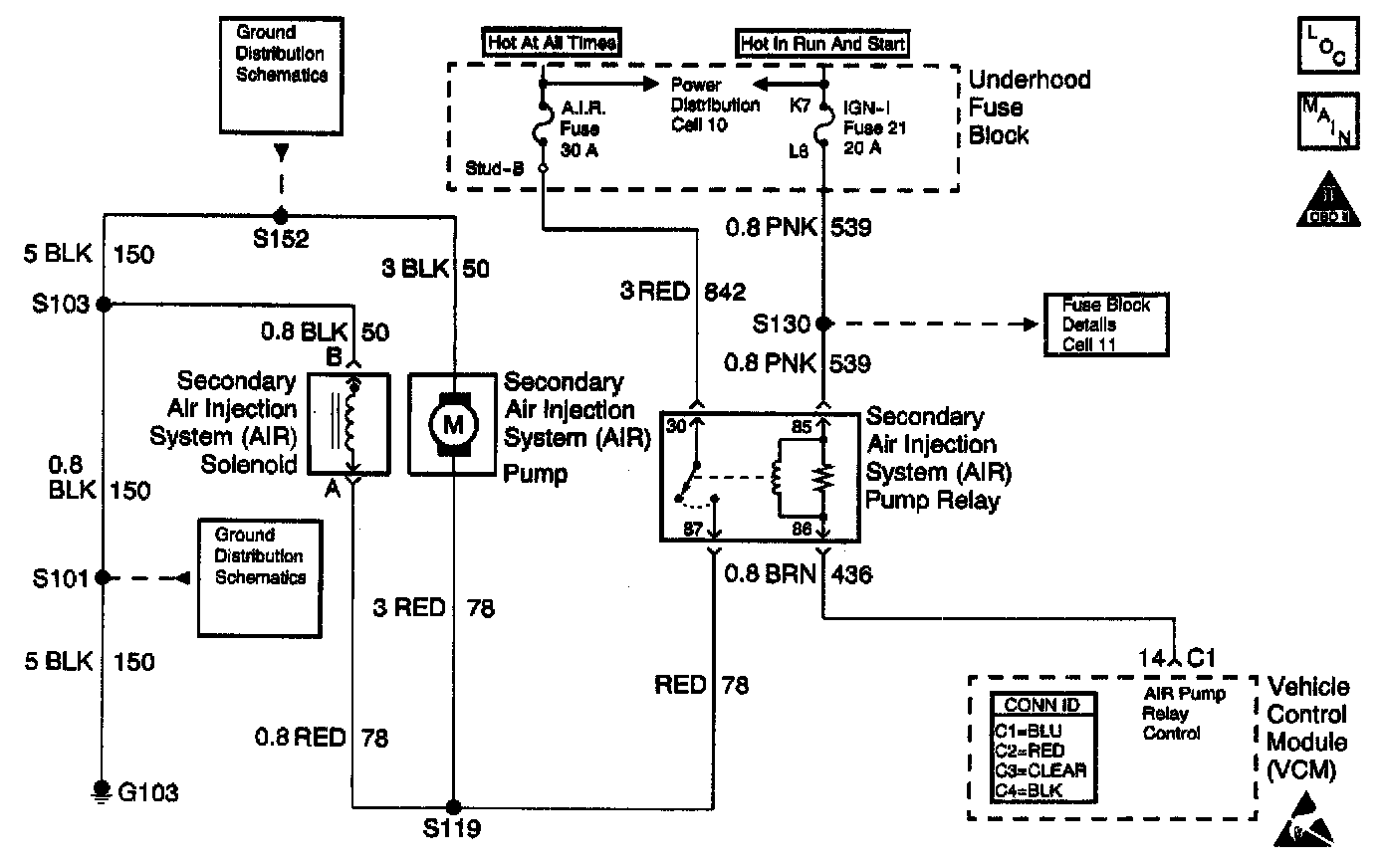

Schematic:

CIRCUIT DESCRIPTION
An AIR pump is used on this vehicle to lower tail pipe emissions at start-up. The VCM supplies a ground to the AIR pump relay, which energizes the AIR pump and the AIR solenoid.

When the AIR Pump is enabled, the VCM monitors the HO2S voltage. If the HO2S voltages go below a calibrated threshold value, the VCM interprets this as an indication that the AIR system is operational.

When the AIR Pump is disabled, the VCM monitors the HO2S voltages. The HO2S voltages should increase above a calibrated threshold value and switch normally.

If the VCM did not sense more than a predetermined amount of HO2S rich switches, a malfunction will be reported.

The VCM will activate the AIR pump during closed loop operation. When the AIR system is activated, the VCM will monitor the HO2S voltages and short term fuel trim values for both banks of the engine. If the AIR system is operating properly, the HO2S voltages should go low and the short term fuel trim should go high.

The VCM checks that the HO2S voltages return to above a rich threshold when the AIR pump is disabled.

If the VCM determines that the HO2S voltages for both banks did not respond as expected during the tests, DTC P0410 will set. If only one sensor responded, the VCM will set either a DTC P1415 or P1416 to indicate on which bank the AIR system is inoperative.

CONDITIONS FOR RUNNING THE DTC
^ No MAF DTCs
^ No MAP DTCs
^ No IAT DTCs
^ No ECT DTCs
^ No TP Sensor DTCs
^ No HO2S DTCs
^ No VSS DTCs
^ No system voltage DTCs
^ No fuel trim DTCs
^ No misfire DTCs
^ No CCP DTCs
^ The MAF is less than 25 g/s.
^ The engine load is less than 34 percent.
^ The power enrichment mode is not active.
^ The DFCO (Decel Fuel Cutoff mode) is not active.
^ The convertor over temperature is not active.
^ The engine run time after Closed Loop is more than 20 seconds.
^ The air/fuel ratio is 14.7:1.
^ The fuel trim counts are between 124-132.
^ The engine speed is above 550 RPM.
^ The ECT is between 80-107°C (176-225°F).
^ The system voltage is more than 11.7 volts.
^ The IAT is more than 2°C (36°F).

CONDITIONS FOR SETTING THE DTC
The HO2S voltage is less than 222 mV for more than 1 second when AIR pump is enabled.

ACTION TAKEN WHEN THE DTC SETS
^ The control module illuminates the Malfunction Indicator Lamp (MIL) if a failure is detected during 2 consecutive key cycles.
^ The control module sets the DTC and records the operating conditions at the time the diagnostic failed. The failure information is stored in the scan tool Freeze Frame and Failure Records.

CONDITIONS FOR CLEARING THE MIL OR DTC
^ The control module turns OFF the MIL after 3 consecutive drive trips when the test has run and passed.
^ A history DTC will clear if no fault conditions have been detected for 40 warm-up cycles. A warm-up cycle occurs when the coolant temperature has risen 22°C (40°F) from the startup coolant temperature and the engine coolant reaches a temperature that is more than 70°C (158°F) during the same ignition cycle.
^ Use a scan tool in order to clear the DTCs.

DIAGNOSTIC AIDS
A low AIR system volume may cause a DTC P1415, P1416 or an intermittent complaint. Also check for the following conditions:
^ Pinched, kinked or restricted AIR pipes, hoses or fittings.
^ Leaks, holes, and loose fittings or hoses.
^ A restricted or obstructed AIR pump inlet.
^ Leaks or restrictions in the vacuum hoses for the AIR shut off valve.

An AIR supply hose that is melted before the check valve may indicate exhaust gas back-flow past the check valve.

An intermittent may be caused by any of the following conditions:
^ A poor connection
^ Rubbed through wire insulation
^ A broken wire inside the insulation

Thoroughly inspect any circuitry that is suspected of causing the intermittent complaint. Refer to Testing for Intermittent and Poor Connections in Diagrams.

If a repair is necessary, refer to Wiring Repairs or Connector Repairs in Diagrams.

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table.
4. This step will determine if the AIR System is functioning correctly.
18. The engine must be running for this test to ensure a vacuum supply to the system.
20. This step will determine if the AIR pump is capable of producing airflow.
23. This step will determine if the VCM is capable of controlling the AIR pump relay.
