P0125

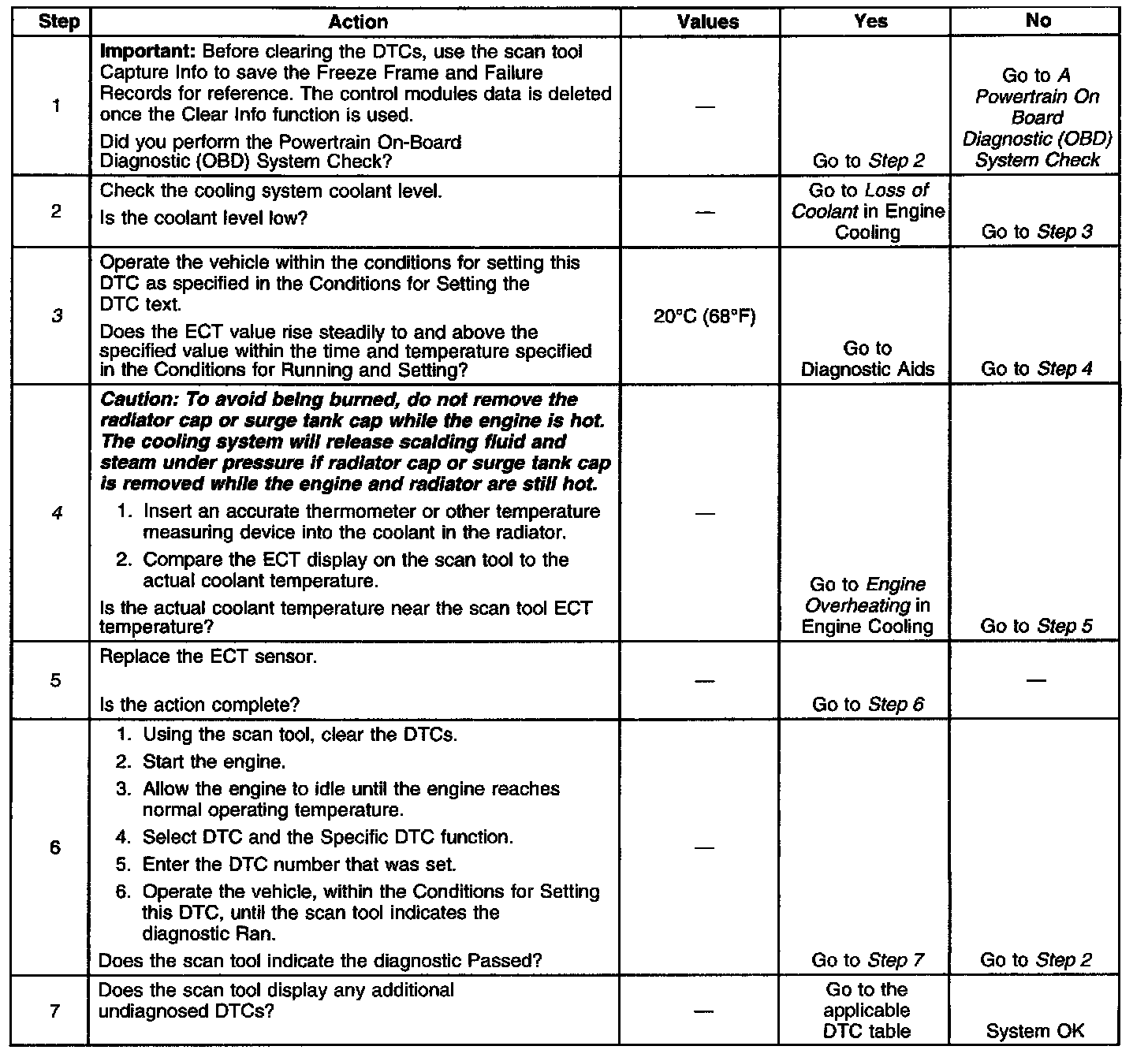

Diagnostic Chart:

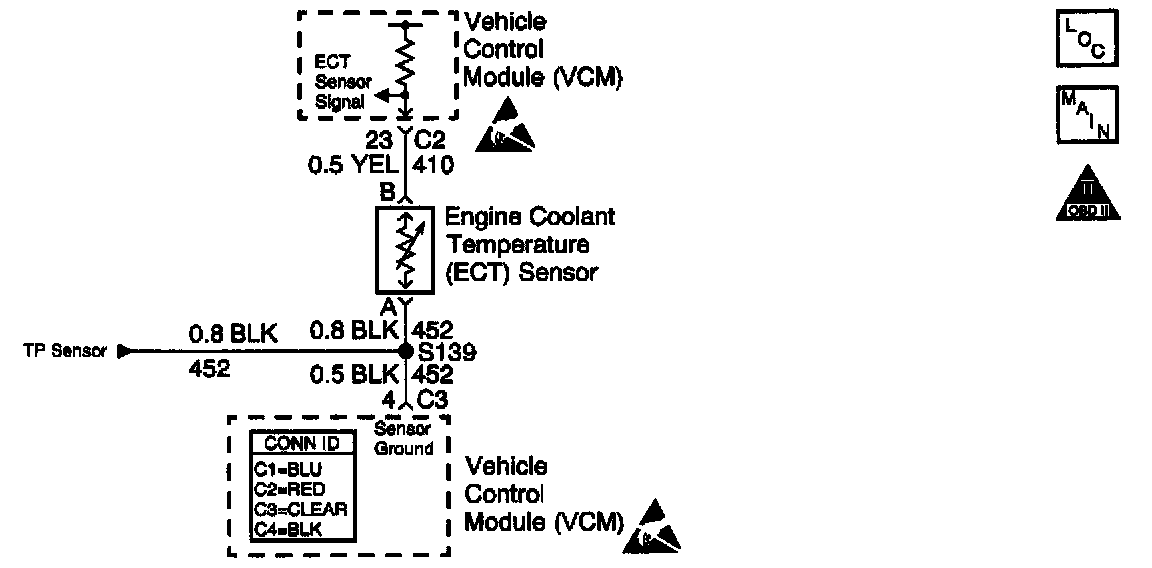

Schematic:

CIRCUIT DESCRIPTION
The controls module monitors the Engine Coolant Temperature (ECT) sensor and engine run time in order to determine how long it takes the ECT to reach the coolant temperature required for Closed Loop operation. DTC P0125 sets if the control module determines that the ECT does not reach a minimum coolant temperature required for Closed Loop operation in a specified amount of time.

CONDITIONS FOR RUNNING THE DTC
^ The engine is running
^ No active ECT sensor DTCs
^ No active Intake Air Temperature (IAT) sensor DTCs
^ The IAT is more than -40°C (-40°F)
^ The ECT is more than -40°C (-40°F)
^ The start-up ECT is 40°C (104°F) or less

Closed Loop Test
^ Vehicle stabilized at -40°C (-40°F)
- Accumulated air flow since start is more than 7500 grams
- Accumulated idle time is less than 360 seconds
^ Vehicle stabilized at -7°C (20°F)
- Accumulated air flow since start is more than 4500 grams
- Accumulated idle time is less than 225 seconds
^ Vehicle stabilized at 10°C (50°F)
- Accumulated air flow since start is more than 1600 grams
- Accumulated idle time is less than 90 seconds

CONDITIONS FOR SETTING THE DTC
^ The closed loop coolant temperature is not reached within a predetermined time. The maximum allowable time depends upon the start-up coolant temperature and the amount of air flow into the engine.
^ Vehicle stabilized at -40°C (-40°F)
The ECT is less than 20°C (68°F) after 8 minutes.
^ Vehicle stabilized at -7°C (20°F)
The ECT is less than 20°C (68°F) after 5 minutes.
^ Vehicle stabilized at 10°C (50°F)
The ECT is less than 20°C (68°F) after 2 minutes.

ACTION TAKEN WHEN THE DTC SETS
^ The control module illuminates the Malfunction Indicator Lamp (MIL) if a failure is detected during 2 consecutive key cycles.
^ The control module sets the DTC and records the operating conditions at the time the diagnostic failed. The failure information is stored in the scan tool Freeze Frame and Failure Records.

CONDITIONS FOR CLEARING THE MIL OR DTC
^ The control module turns OFF the MIL after 3 consecutive drive trips when the test has run and passed.
^ A history DTC will clear if no fault conditions have been detected for 40 warm-up cycles. A warm-up cycle occurs when the coolant temperature has risen 22° (40°F) from the startup coolant temperature and the engine coolant reaches a temperature that is more than 70°C (158°F) during the same ignition cycle.
^ Use a scan tool in order to clear the DTCs.

DIAGNOSTIC AIDS
When a DTC P0125 sets, an out of range ECT sensor or an engine thermostat that does not operate correctly is indicated.

Inspect for a faulty connection or a damaged harness.

Inspect the VCM harness connector for the following conditions:

An intermittent may be caused by any of the following conditions:
^ A poor connection
^ Rubbed through wire insulation
^ A broken wire inside the insulation

Thoroughly inspect any circuitry that is suspected of causing the intermittent complaint. Refer to Testing for Intermittent and Poor Connections in Diagrams.

If a repair is necessary, refer to Wiring Repairs or Connector Repairs in Diagrams.

TEST DESCRIPTION
The numbers below refer to the step numbers in the diagnostic table.
3. This test checks the engine warm-up rate. In the Conditions for Setting the DTC text, the technician should be able to reference the allowable engine run time relative to the cold start up temperature of the vehicle.
4. This test checks the coolant sensor reading on the scan tool and the actual coolant temperature.
