C0223

C0223 or C023

Circuit Description
As the wheel spins, the wheel speed sensor produces an AC signal. The EBCM uses the frequency of the AC signal to calculate the wheel speed.

Conditions for Running the DTC
^ Ignition switch in the RUN position.
^ All wheel speed sensor signals are greater than 32 km/h (20 mph) with brake applied or 19 km/h (12 mph) with brake released.

Conditions for Setting the DTC
Either of the following conditions will set DTC C0223.
^ A sudden loss of the corresponding wheel speed sensor signal is detected for 15 milliseconds.
^ A sudden increase is detected in the corresponding wheel speed sensor signal at a rate greater than 8.8 km/h (5.5 mph) for 105 milliseconds.

Action Taken When the DTC Sets
^ The ABS indicator lamp turns on.
^ The ABS disables for as long as the malfunction is present. If the malfunction occurs 3 or more separate times, the ABS is disabled for the remainder of the ignition cycle

Conditions for Clearing the DTC
^ Repair the condition(s) responsible for setting the DTC.
^ Use a scan tool in order to clear the DTC.

Diagnostic Aids
Driving the vehicle on extremely rough terrain can cause DTC C0223 to set even though the system is not malfunctioning. Thoroughly inspect any connection or circuitry that is suspected of causing an intermittent malfunction. Inspect for the following conditions:
^ Backed out terminals
^ Improper mating
^ Broken locks
^ Corrosion
^ Improperly formed or damaged terminals
^ Poor terminal-to-wiring connections
^ Physically damaged wiring
^ Wiring broken inside the insulation
If the customer says that the ABS indicator lamp is on only during humid conditions such as rain, snow, or vehicle wash, then thoroughly inspect all wheel speed sensor circuits for signs of water intrusion. Use the following procedure:
1. Spray the suspected area with a 5% salt water solution (two teaspoons of salt to 12 oz. of water).
2. Drive the vehicle above 24 km/h (15 mph) for at least 30 seconds.

If the DTC returns, replace the suspected harness.

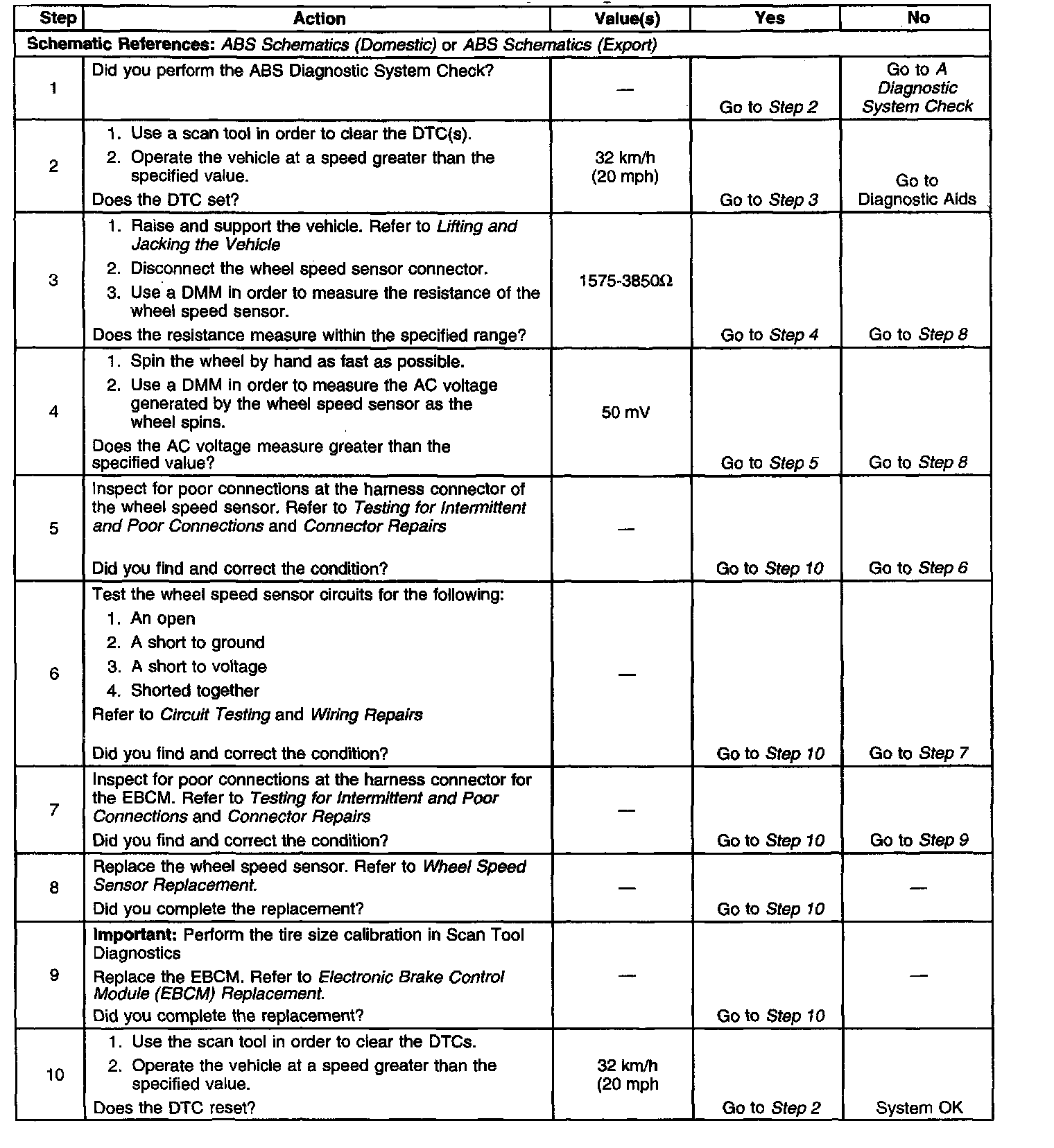

When inspecting a wheel speed sensor, inspect the sensor terminals and the harness connector for corrosion. If evidence of corrosion exists, then replace the wheel speed sensor. Refer to Wheel Speed Sensor Replacement.
