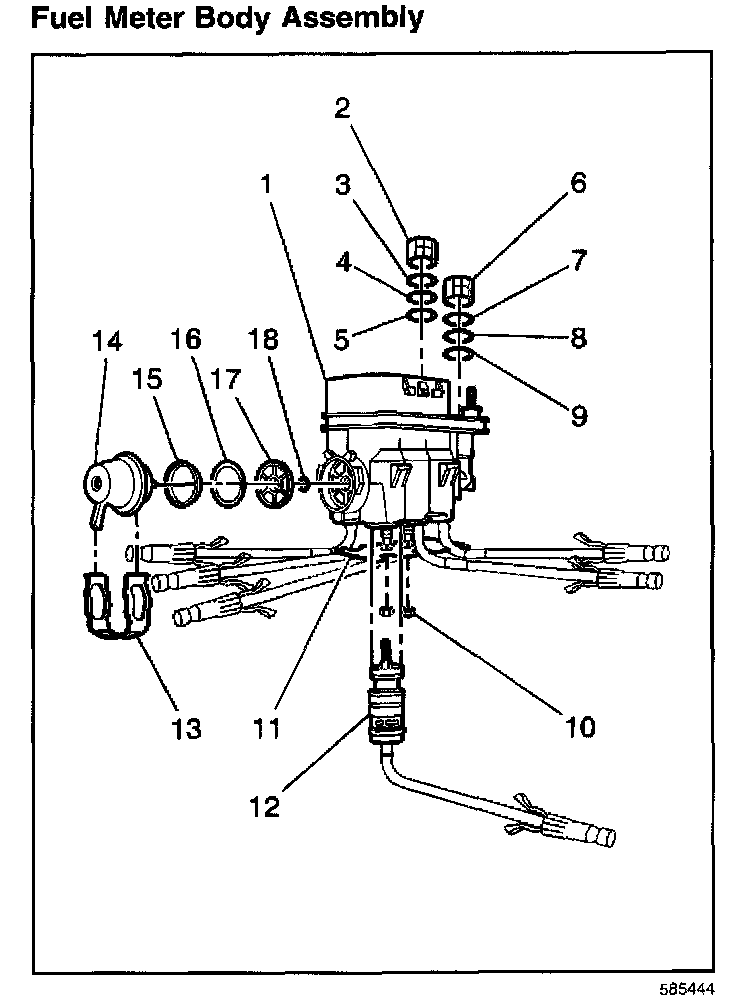

Fuel Meter Body Assembly

Fuel Meter Body Assembly:

The fuel meter body assembly (1) attaches to the lower intake manifold. The fuel meter body assembly performs the following functions:
^ It distributes fuel evenly to the injectors (12)
^ It integrates the fuel pressure regulator (14) into the fuel metering system
