Oil Pressure Sensor: Service and Repair

^ Tools Required
- J 41712 0il Pressure Switch Socket

Removal Procedure





1. Remove the engine cover. Refer to Engine Cover Replacement.
2. Disconnect the engine oil pressure gauge sensor electrical connector.
3. Hold the engine oil pressure gauge sensor fitting with a wrench.

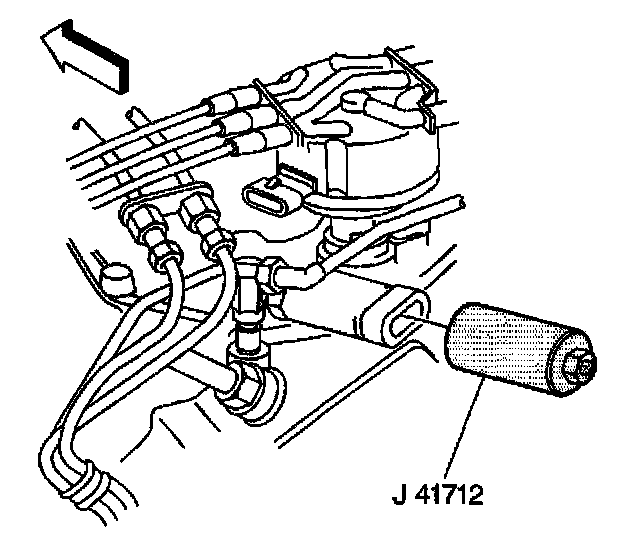

4. Remove the engine oil pressure gauge sensor using J 41712.





Important: Note the alignment of the engine oil pressure gauge sensor fitting prior to removal.

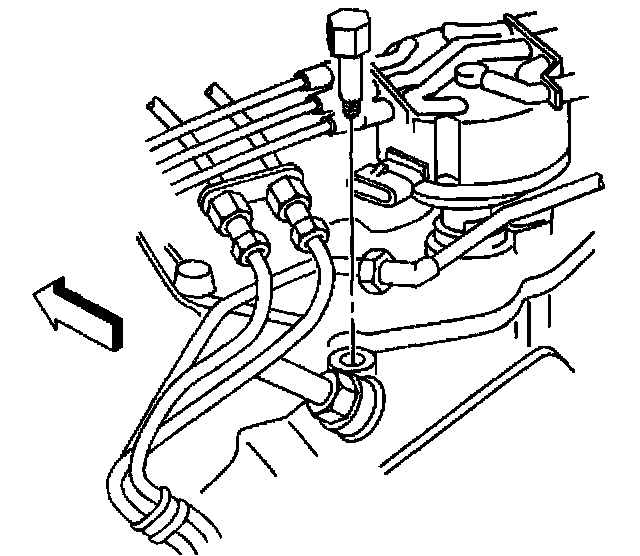

5. Remove the engine oil pressure gauge sensor fitting, if necessary.


Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

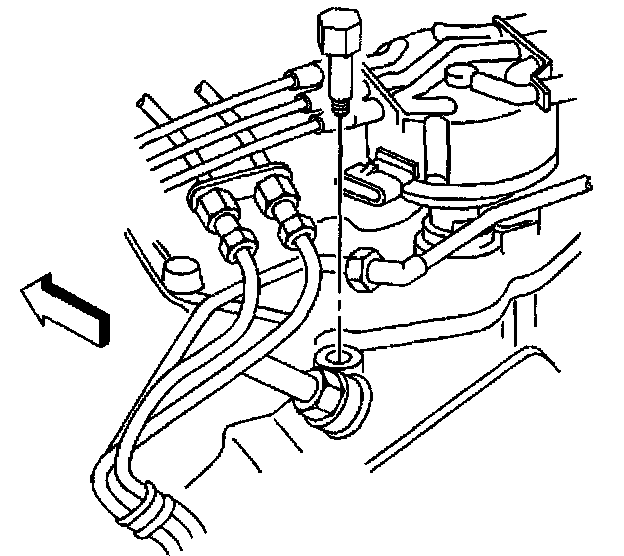

1. Install the engine oil pressure gauge sensor fitting, if removed.
1.1. Tighten the engine oil pressure gauge sensor fitting to 15 Nm (11 ft. lbs.).

Important: Do not loosen the sensor fitting. Do not tighten the sensor fitting more than one turn to align.

1.2. Tighten the sensor fitting until properly align.





2. Install the engine oil pressure gauge sensor.
3. Hold the engine oil pressure gauge sensor fitting with a wrench to prevent from turning.

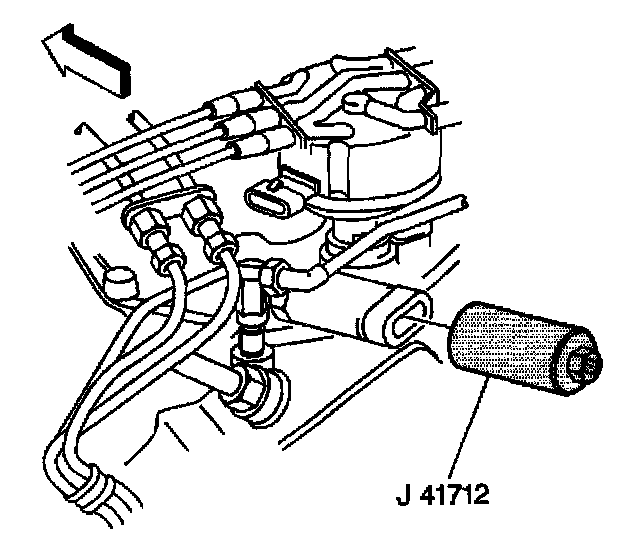

^ Using J 41712 tighten the engine oil pressure gauge sensor to 30 Nm (22 ft. lbs.).
4. Connect the engine oil pressure gauge sensor electrical connector.
5. Install the engine cover. Refer to Engine Cover Replacement.
