Air Cleaner Outlet Duct Replacement

REMOVAL PROCEDURE

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.




1. Disconnect the negative battery cable.
2. Remove the engine cover.

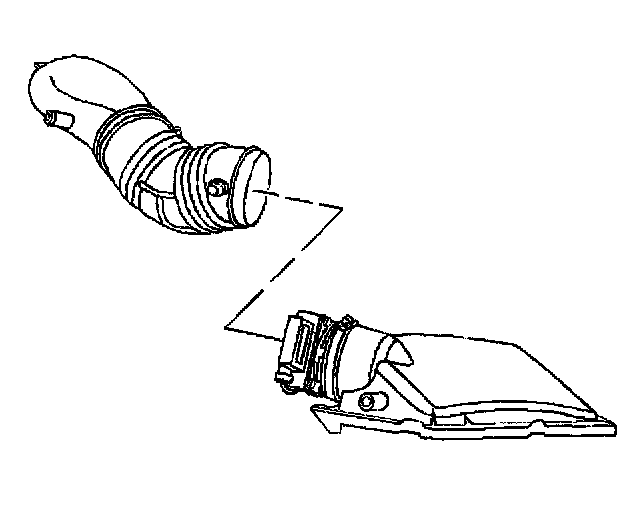

3. Remove the retaining nut (1) from the air cleaner outlet.
4. Remove the air cleaner outlet duct (2) from the throttle body assembly.

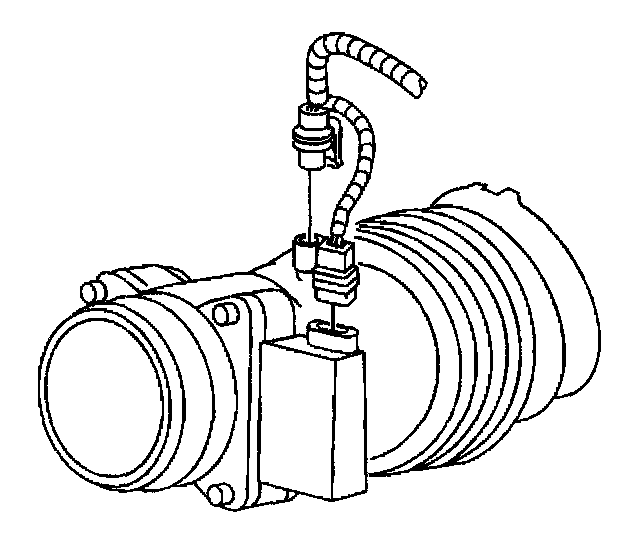

5. Disconnect the harness connector of the intake air temperature (IAT) sensor.




6. Loosen the air cleaner outlet duct from the mass air flow (MAF) sensor.
7. Remove the air cleaner outlet duct.

INSTALLATION PROCEDURE

NOTE: Refer to MAF and Screen Notice in Service Precautions.




1. Install the air cleaner outlet duct to the MAF sensor.




2. Connect the IAT sensor harness connector.




3. Install the air cleaner outlet duct (2) on the throttle body assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Tighten the retaining nut (1).

Tighten
Tighten the nut 2 N.m (18 lb in).

5. Install the engine cover.
6. Connect the negative battery cable.
