AIR Cleaner Assembly Replacement

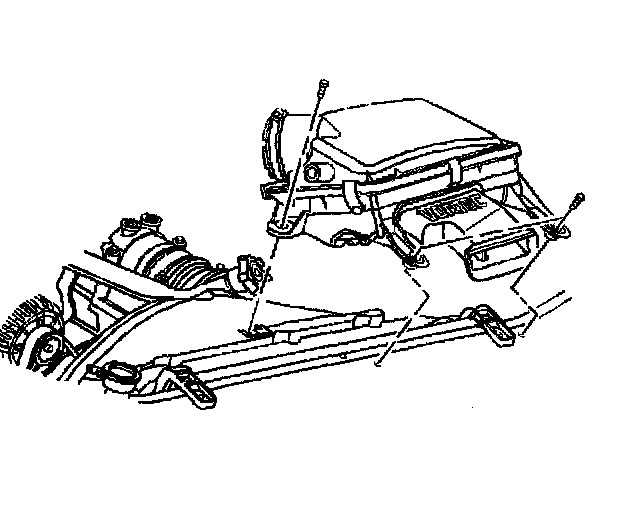

REMOVAL PROCEDURE
1. Loosen the air cleaner duct clamp at the Mass Air Flow (MAF) sensor.
2. Remove the air cleaner assembly bolts.
3. Remove the air cleaner assembly.

INSTALLATION PROCEDURE
1. Install the air cleaner assembly

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the air cleaner assembly bolts.

Tighten
Tighten the bolt to 18 N.m (13 lb ft).

NOTE: Refer to MAF and Screen Notice in Service Precautions.

3. Install the air cleaner duct to the MAF sensor.
