8. Valve Rocker Arm Cover Removal - Left

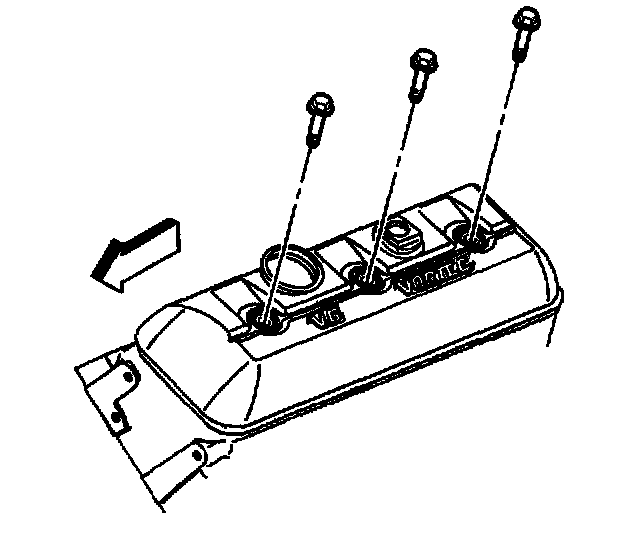

1. Remove the valve rocker arm cover bolts.
2. Remove the valve rocker arm cover bolt grommets.
3. Discard the valve rocker arm cover bolt grommets.

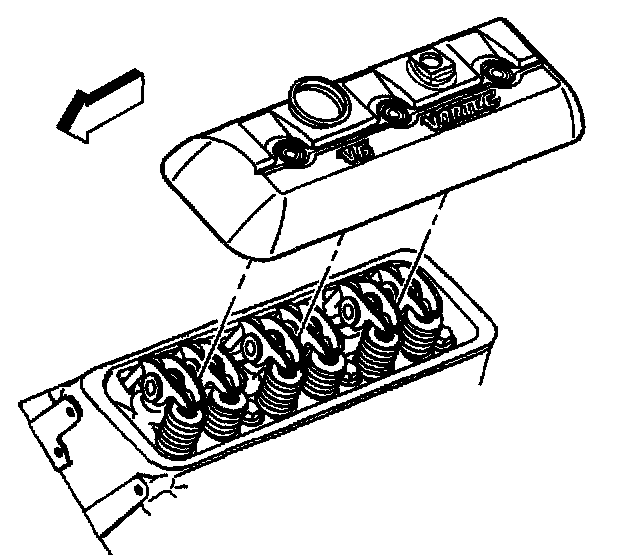

4. Remove the valve rocker arm cover.

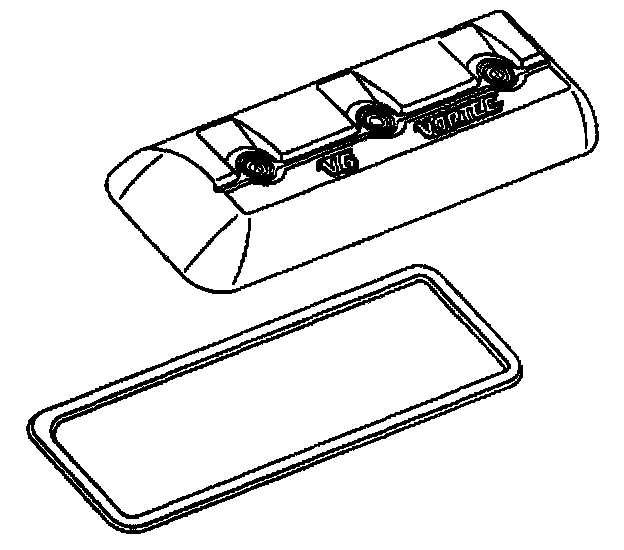

5. Remove the valve rocker arm cover gasket.
6. Discard the valve rocker arm cover gasket.
