Accessory Mounting Brackets Replacement (PS Pump)


Removal Procedure





1. Remove the fan shroud. Refer to Fan Shroud Replacement in Cooling System.
2. Remove the drive belt. Refer to Drive Belt Replacement.

Important: Do not evacuate the air conditioning system.

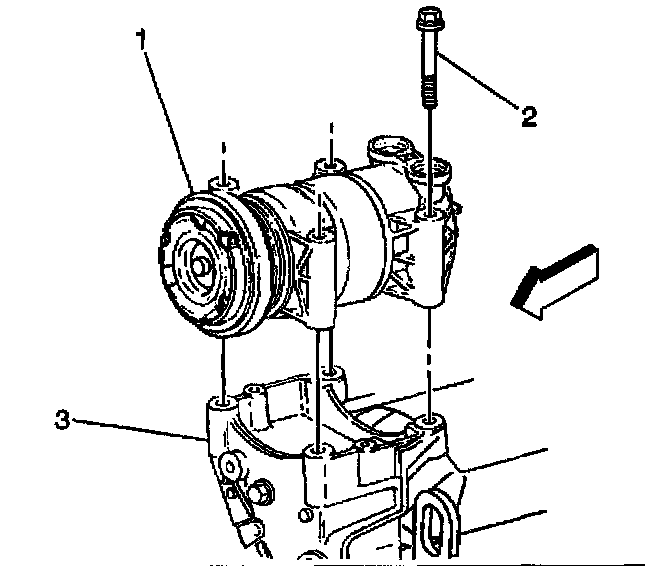

3. Remove the mounting bolts (2) for the air conditioning compressor (1), if equipped.
4. Move the compressor aside and support.
5. Remove the drive belt idler pulley if not equipped with A/C. Refer to Drive Belt Idler Pulley Replacement (Right Side) or Drive Belt Idler Pulley Replacement (Without A/C).
6. Remove the power steering pump pulley. Refer to Power Steering Pulley Replacement (Gasoline) or Power Steering Pulley Replacement (Diesel) in Steering and Suspension.

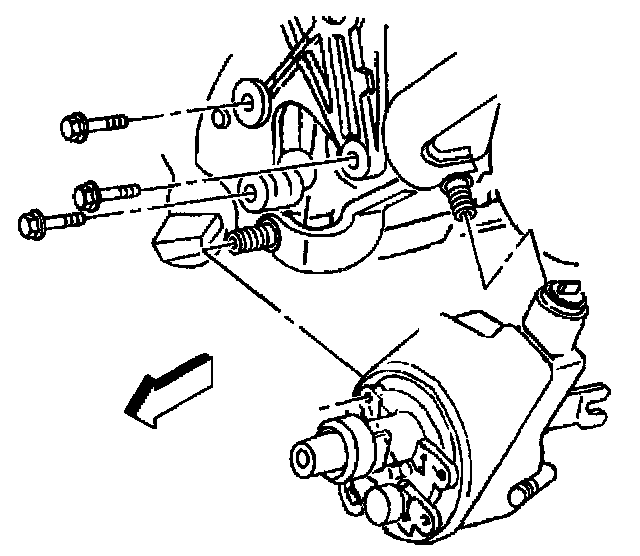

7. Remove the three bolts holding the power steering pump to the power steering pump mounting bracket.
The power steering pump can remain on the engine.

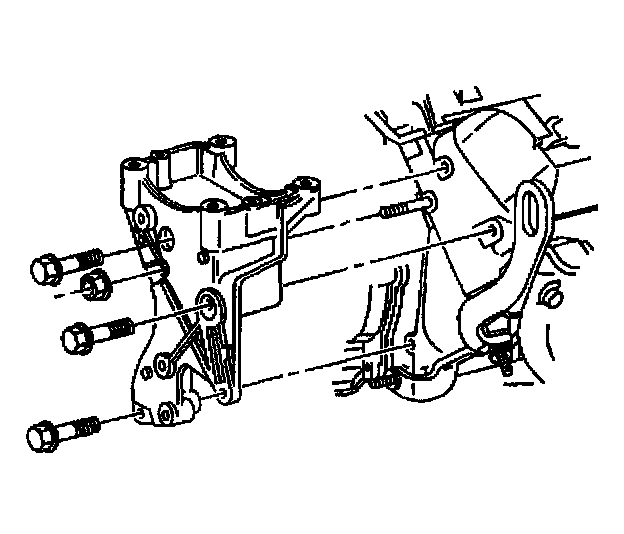

8. Remove the three bolts and nut holding the power steering pump mounting bracket to the engine.
9. Slide the power steering pump mounting bracket off the stud and power steering pump.


Installation Procedure

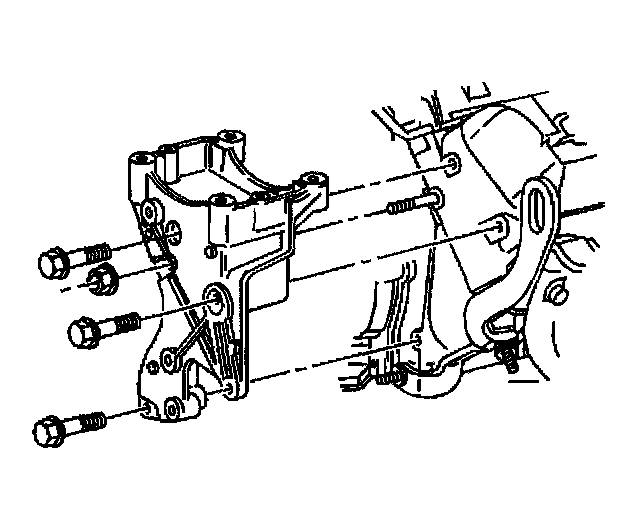

1. Slide the power steering pump mounting bracket on the stud and the power steering pump.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the three bolts and the nut.
^ Tighten the power steering pump mounting bolts and the nut to 41 Nm (30 ft. lbs.).

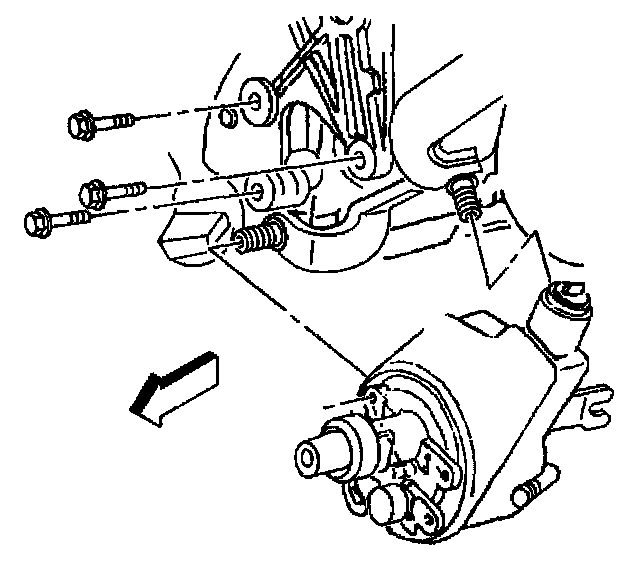

3. Install the three bolts for the power steering pump.
^ Tighten the power steering pump mounting bracket to power steering pump bolts to 50 Nm (37 ft. lbs.).
4. Install the power steering pump pulley. Refer to Power Steering Pulley Replacement (Gasoline) or Power Steering Pulley Replacement (Diesel) in Steering and Suspension.
5. Install the air conditioning compressor, if equipped. Refer to Compressor Replacement in Heating and Air Conditioning.
6. Install the drive belt idler pulley if not equipped with ARC. Refer to Drive Belt Idler Pulley Replacement (Right Side) or Drive Belt Idler Pulley Replacement (Without A/C).
7. Install the drive belt. Refer to Drive Belt Replacement.
8. Install the fan shroud. Refer to Fan Shroud Replacement in Cooling System.
