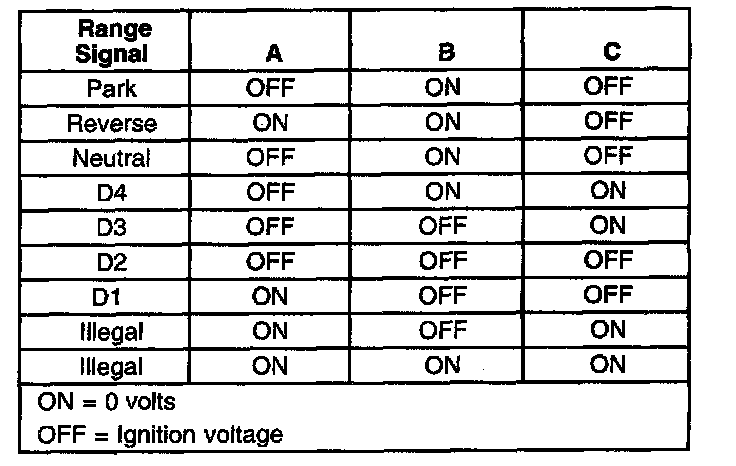

Trans Fluid Pressure Man. Valve Pos. Switch Logic (Diesel)
Trans Fluid Pressure Man. Valve Pos. Switch Logic (Diesel)
