Home >> Chevy Truck >> 2000 >> Express 1 Ton Van V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C3

C3

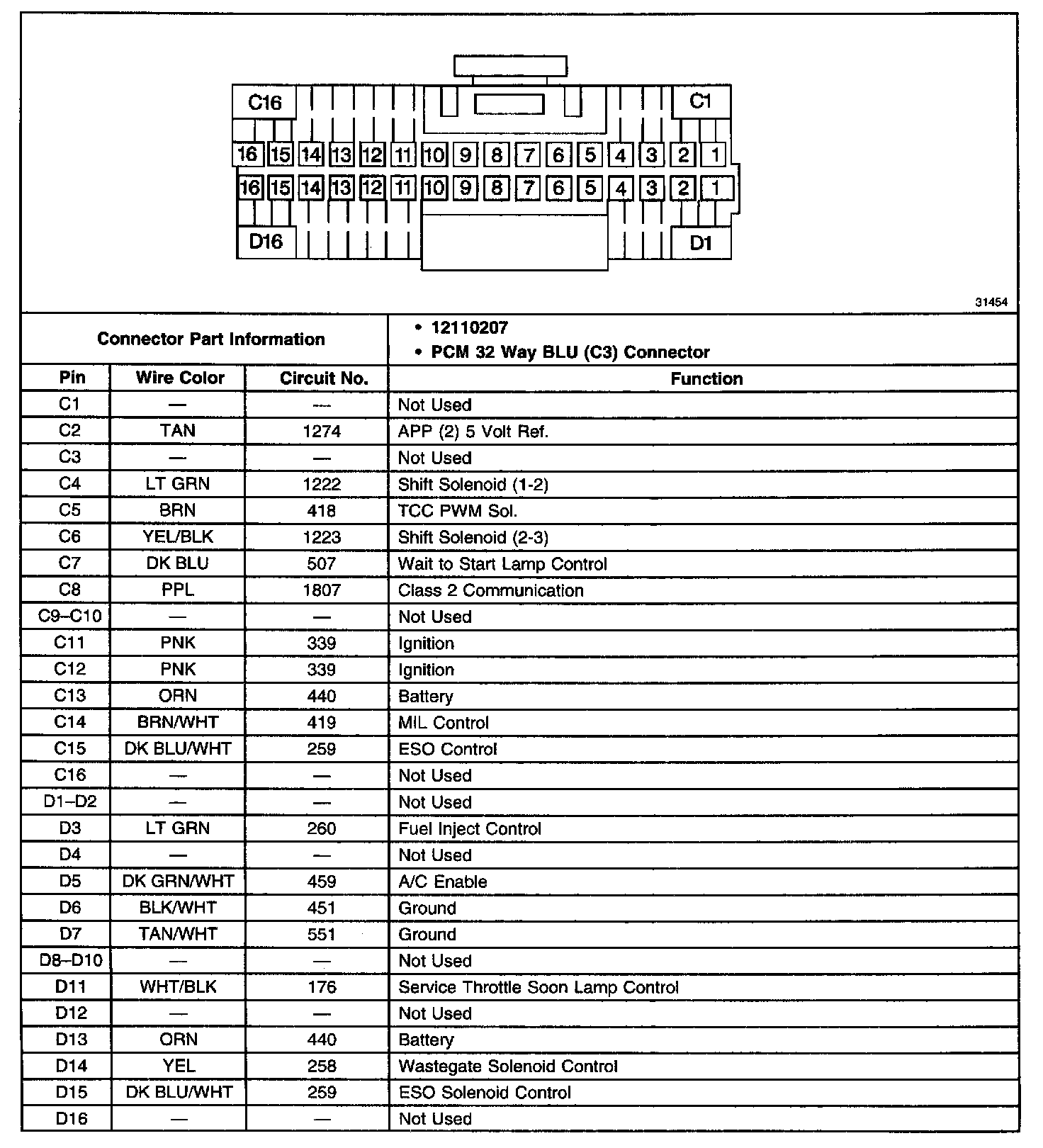

PCM 32 Way (C3) Connector:
