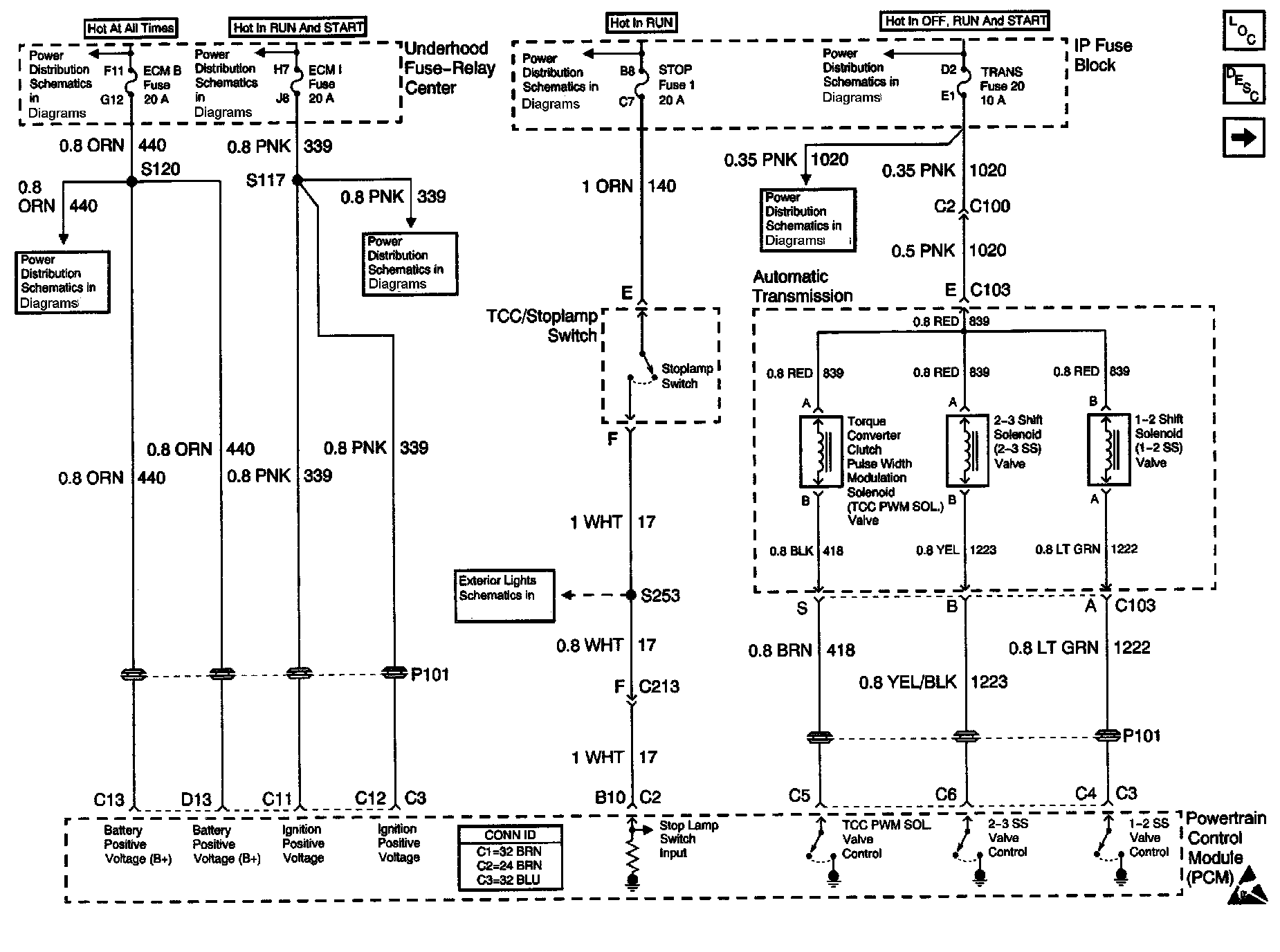

Diesel (PWR, Solenoids, and TCC/Stoplamp Controls)
Diesel (PWR, Solenoids, and TCC/Stoplamp Controls)
