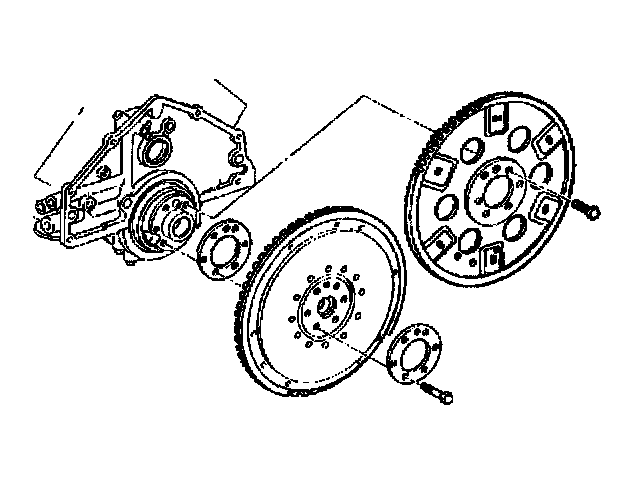

88. Engine Flywheel Installation

1. Install the inner retainer (if equipped).
2. Install the flywheel.
3. Install the outer retainer (if equipped).

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the flywheel bolts.
^ Tighten the bolts to 90 Nm (65 ft. lbs.).
