P0223

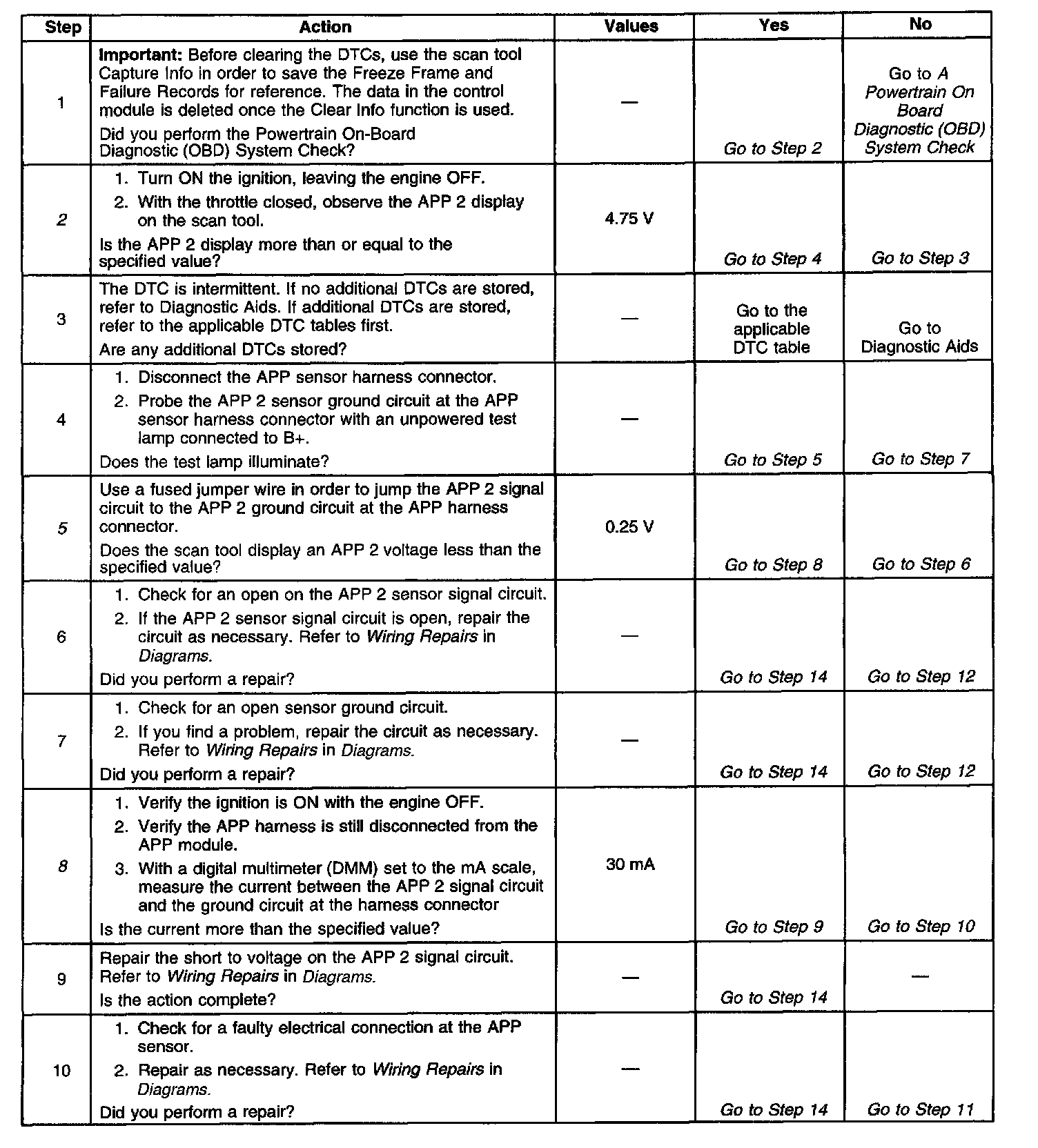

Diagnostic Chart (Part 1 Of 2):




Diagnostic Chart (Part 2 Of 2):




Schematic:




CIRCUIT DESCRIPTION
The Accelerator Pedal Position (APP) module provides a voltage signal that changes relative to the accelerator pedal position. There are 3 sensors which are located within the APP module that are scaled differently.

CONDITIONS FOR RUNNING THE DTC
The ignition is ON.

CONDITIONS FOR SETTING THE DTC
^ The voltage is more than 4.75 volts on the APP 2.
^ The condition is met for 2 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The service throttle soon lamp will not illuminate when one APP DTC sets. The Powertrain Control Module (PCM) will only illuminate the service throttle soon lamp when multiple APP DTCs set.
^ The PCM records the operating conditions at the time the diagnostic fails. This information is stored in the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ A History DTC clears after 40 consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures.
^ Use a scan tool in order to clear the DTCs.

DIAGNOSTIC AIDS
There are no driveability issues associated with the APP module unless a DTC is present. The most likely causes of this DTC are faulty connections or the sensor. The least likely cause is a PCM problem.

A scan tool reads the APP 2 position in volts and should read approximately 4.5 volts with the throttle closed and the ignition ON or at idle. The voltage should decrease at a steady rate as the throttle is moved toward Wide Open Throttle (WOT). Also, 90 percent pedal travel is acceptable for a correct APP operation. Scan the APP 2 signal while depressing the accelerator pedal with the engine stopped and the ignition ON. The display should vary from approximately 4.5 volts when the throttle is closed to approximately 1.5 volts when the throttle is held at the WOT position. A DTC P1125 may possibly set along with DTC P0223 if the signal circuit is open.

TEST DESCRIPTION
The numbers below refer to the step numbers on the diagnostic table:
2. This step determines if P0223 is a hard failure or an intermittent condition.
5. This step checks for an open in the ground circuit.
8. This step checks for a short to power or a bad APP module.
13. This step ensures that the replacement PCM, which utilizes an electrically Erasable Programmable Read-only Memory (EEPROM), is programmed when installed.
