P0112

Diagnostic Chart:

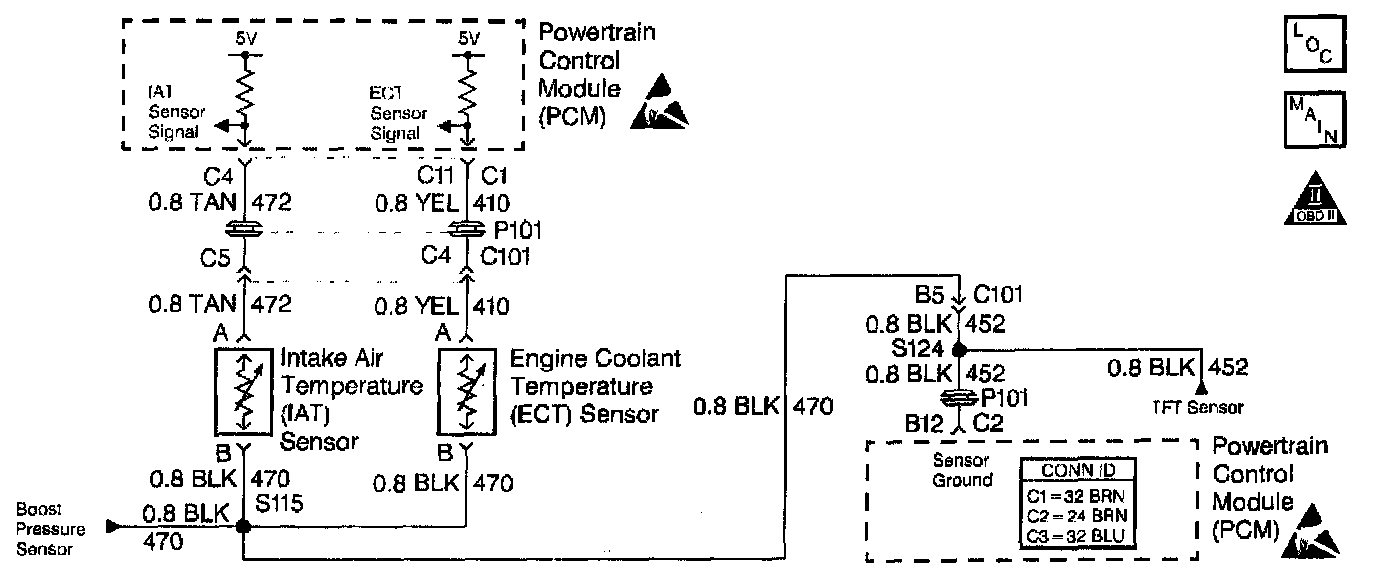

Schematic:

CIRCUIT DESCRIPTION
The Intake Air Temperature (IAT) sensor is a thermistor that controls the signal voltage to the PCM. When the air is cold, the sensor resistance is high, therefore the PCM will see a high signal voltage. As the air warms, the sensor resistance becomes less and the voltage drops.

CONDITIONS FOR RUNNING THE DTC
The engine coolant temperature is less than 42.5°C (109°F).

CONDITIONS FOR SETTING THE DTC
^ The intake air temperature is more than or equal to 152°C (304°F).
^ The conditions were met for 2 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ The PCM illuminates the Malfunction Indicator Lamp (MIL) on the second consecutive drive trip the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the Failure Records store this information. If the diagnostic reports a failure on the second consecutive drive trip, the Freeze Frame records the operating conditions at the time of the failure and updates the Failure Records.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The PCM will turn the MIL off after 3 consecutive trips without a fault condition.
^ A History DTC clears after 40 consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures.

Use a scan tool in order to clear the DTCs.

DIAGNOSTIC AIDS
Check the harness routing for a potential short to ground in the signal circuit. The scan tool displays the intake air temperature in degrees celsius. Refer to Symptoms. A skewed sensor could result in poor driveability complaints. Refer to Temperature vs Resistance. Symptom Related Diagnostic Procedures

TEST DESCRIPTION
The numbers below refer to the step numbers on the Diagnostic Table.
2. This step determines if P0112 is a hard failure or an intermittent condition.
3. This test will determine if the PCM can recognize an open sensor.
4. This step will determine if the problem is a malfunctioning PCM or if the signal wire is shorted to ground. The normal resistance across the IAT sensor connector harness is 4000-5000 ohms.
