Front Air Dam Replacement
Front Air Dam Replacement
Removal Procedure
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle () in General Information.
2. Remove the front air deflector extension from the front air deflector, if equipped. Refer to Air Dam Extension Replacement - Front (Air Dam Extension Replacement - Front) .

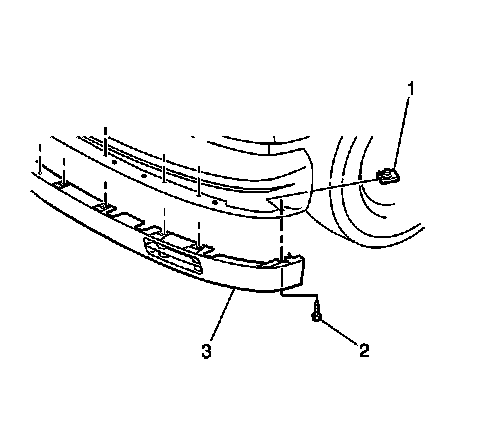

3. Remove the bolts (2) that retain the front air deflector (3) to the bumper.
4. Remove the front air deflector (3) from the bumper.
Installation Procedure
1. Install the front air deflector (3) to the bumper.
2. Align the locator tabs on the front air deflector (3) to the holes in the bumper.
Notice: Refer to Fastener Notice in Cautions and Notices.
3. Install the front air deflector retaining bolts to the bumper.
Tighten the front air deflector retaining bolts to 3 N.m (27 lb in).
4. Install the front air deflector extension to the front air deflector, if equipped. Refer to Air Dam Extension Replacement - Front (Air Dam Extension Replacement - Front) .
