Air Intake Baffle Replacement - Radiator

Air Intake Baffle Replacement - Radiator

Removal Procedure

1. Raise and support the vehicle with suitable safety stands. Refer toLifting and Jacking the Vehicle () in General Information.




2. Remove the auxiliary oil cooler lines from the oil cooler, if equipped. Refer toEngine Oil Cooler Hose/Pipe Replacement in Engine Cooling.

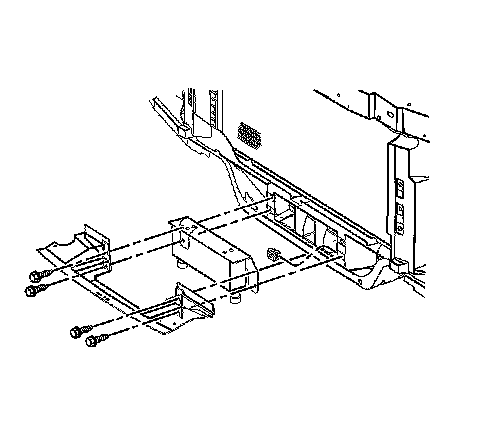

3. Remove the bolts securing the air baffle to the radiator support.
4. Remove the air baffle from the vehicle.



Installation Procedure





1. Install the air baffle to the vehicle.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the air baffle retaining bolts to the radiator support.

Tighten the bolts to 12 N.m (106 lb in).

3. Install the auxiliary oil cooler lines to the oil cooler, if equipped. Refer toEngine Oil Cooler Hose/Pipe Replacement in Engine Cooling.
4. Remove the safety stands.
5. Lower the vehicle.
