Air Dam Extension Replacement - Front

Air Dam Extension Replacement - Front

Removal Procedure

1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle () in General Information.

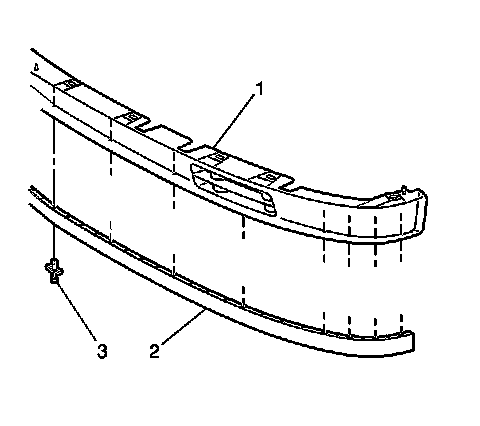

2. Remove the push pin rivets (3) that retain the front air deflector extension to the front air deflector.
3. Remove the front air deflector extension (2) from the front air deflector (1).



Installation Procedure





1. Install the front air deflector extension (2) to the front air deflector (1).
2. Install the push pin rivets (3) in order to retain the front air deflector extension (2) to the front air deflector (1).
3. Lower the vehicle.
