Throttle Position Sensor: Locations

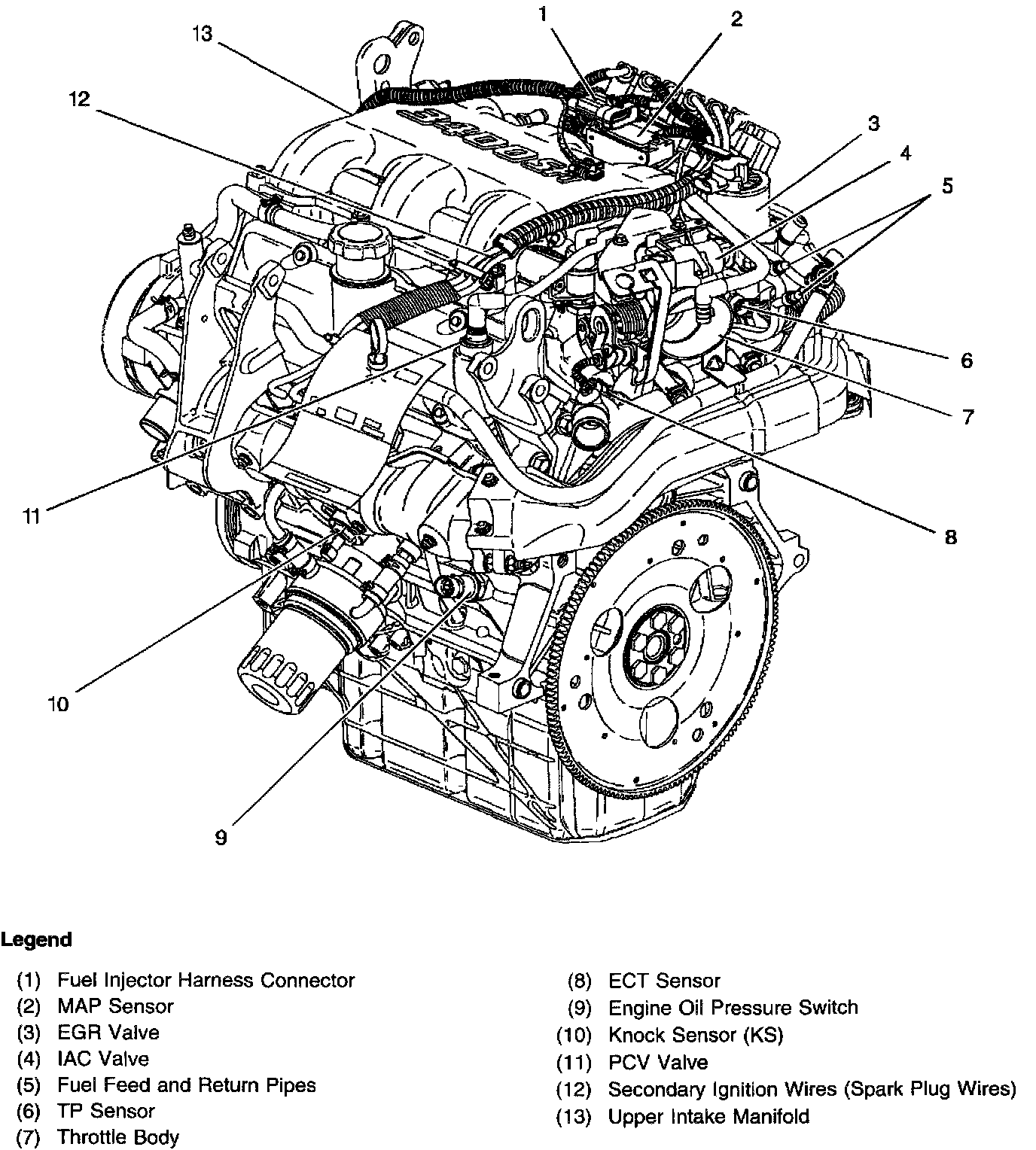

Engine Composite View 3400:
IAC, EGR Valves, TP, IAT, MAF Sensors:
Top, Front LH Side Of Engine:
Top of the engine, on the throttle assembly
