Gear Tooth Contact Pattern Check

Application Procedure

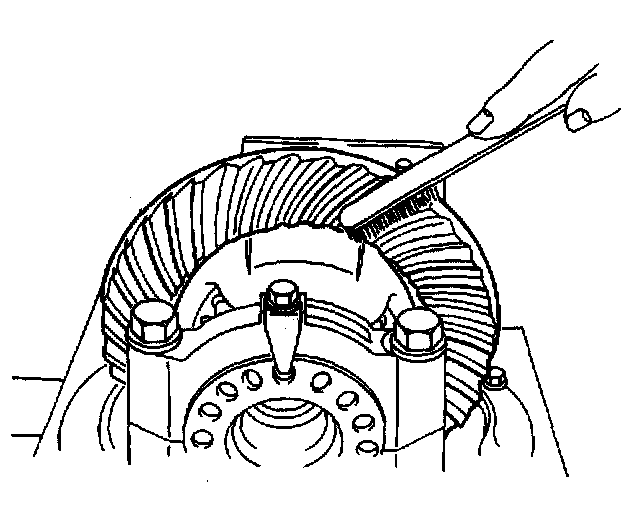

1. Apply a light coating of gear marking compound GM P/N 1052351, or the equivalent, to the ring gear teeth not making contact with the pinion gear.
2. Insert a standard drift punch between the ring gear and the differential carrier to bind the ring gear and create a drag.

Important: In order to ensure an accurate contact pattern, make sure the ring gear turns one revolution only,

3. Slowly and evenly turn the pinion gear in the drive direction until the ring gear has made one complete revolution. Because of the drag simulated in the ring gear, this will produce a contact pattern on the drive side of the ring gear (pinion gear driving ring gear).
4. Turn the pinion gear in the opposite direction with a drag simulated on the ring gear to produce a contact pattern on the coast side of the ring gear (ring gear driving pinion gear).


Inspection Procedure

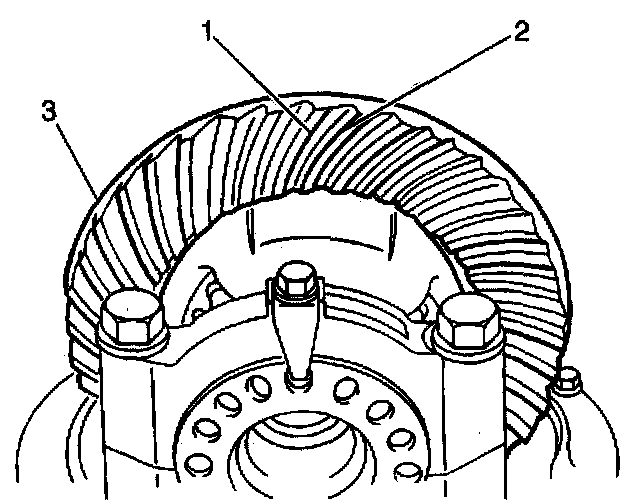

1. Inspect the drive side (2) of the ring gear teeth (concave) and the coast side (1) of the ring gear teeth (convex).
2. Inspect the contact pattern around the ring gear (3). Uneven contact around the ring gear indicates excessive ring gear runout.
3. Inspect the drive pattern. The drive pattern should be centrally located between the top and the bottom of the ring gear teeth. Under an increased load, the pattern spreads out and tends to move toward the heel of the tooth. Inspect the toe. To compensate for an increased load the contact pattern can be somewhat closer to the toe.
4. Inspect the heel. Under heavy loading conditions, up hill or rapid acceleration, the pattern may extend almost the full distance between the heel and the toe. Refer to Gear Tooth Contact Pattern.
5. Inspect the pinion gear for the proper selective shim if excessive contact pattern error is present with the proper backlash specification.

Heel To Toe Patterns

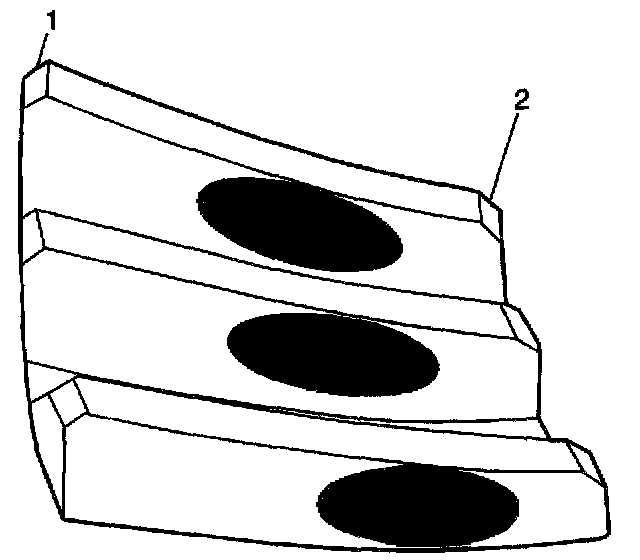

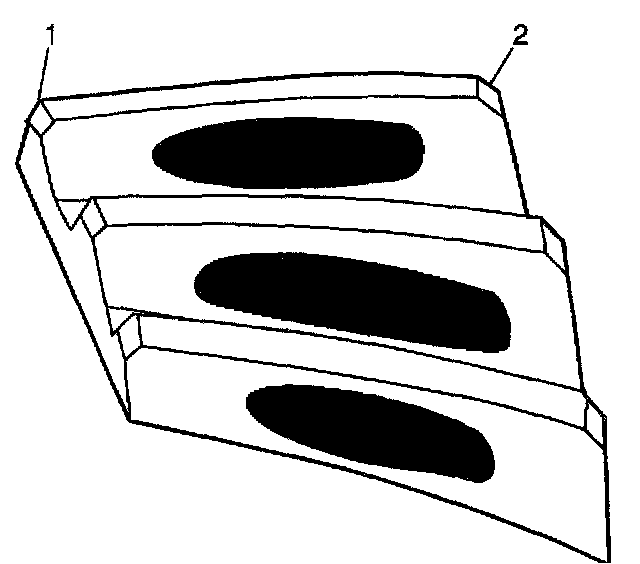

^ A typical drive pattern from heel (2) to toe (1) has a normal drive contact.

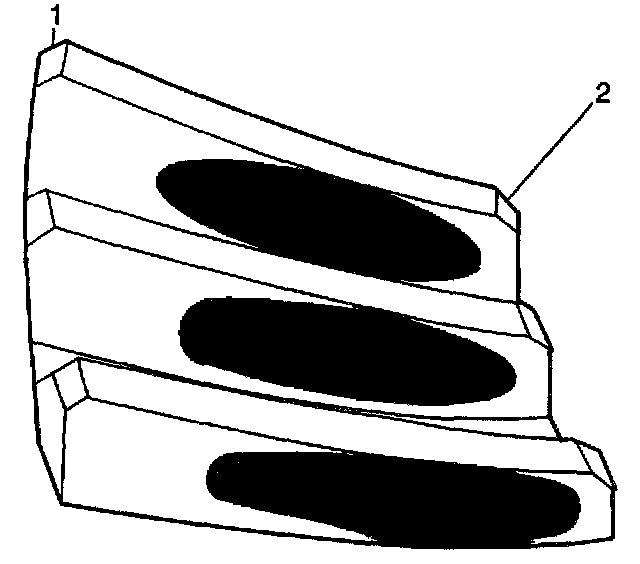

^ A drive pattern under load from heel (2) to toe (1) has a normal drive contact.





^ A coast pattern from heel (2) to toe (1) has a normal drive contact.

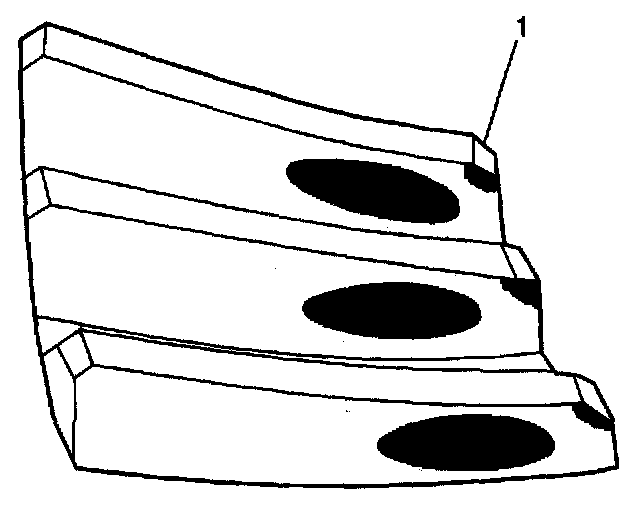

^ A ring gear which is too far from the pinion causes the heel (1)contact to move the ring toward the pinion.

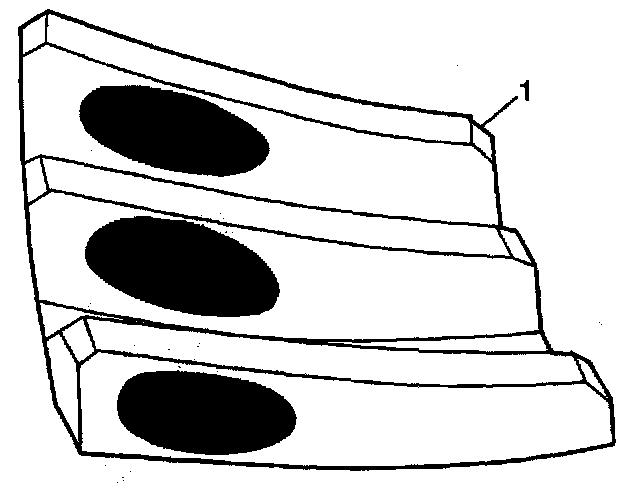

^ A ring gear which is too close to the to the pinion causes the toe (1) contact to move the ring away from the pinion.

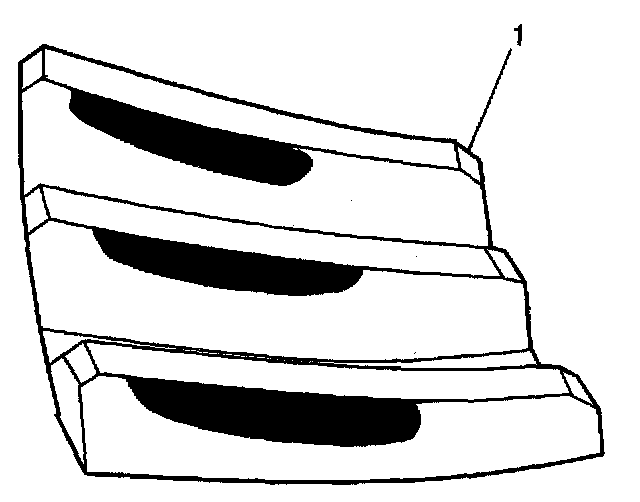

^ A pinion which is too far from the ring gear (1) causes the face contact to move toward the ring.





^ A pinion which is too close to the ring gear (1) causes the flank contact to move away from the ring.

Outer End To Inner End Patterns

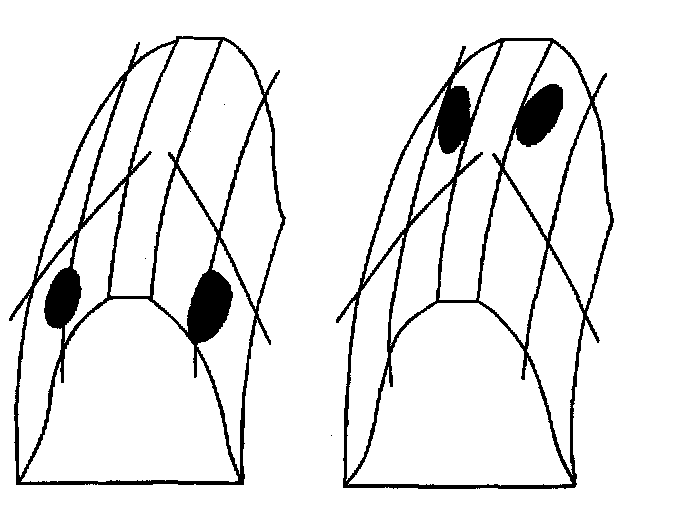

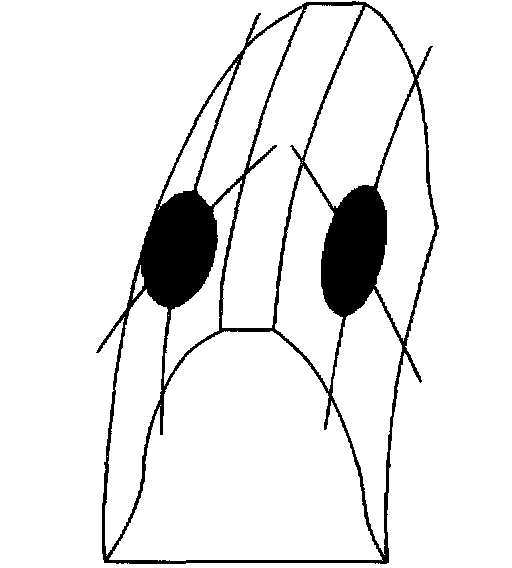

^ Contact between the outer end and inner end on the drive side and the coast side is normal.

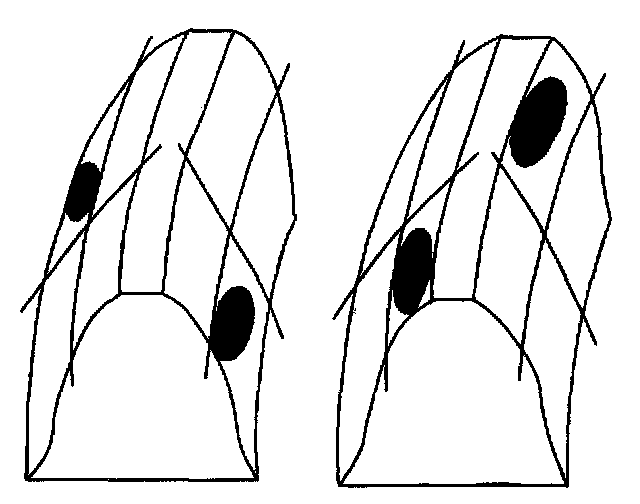

^ An inner end and outer end high contact i caused by a shallow pinion depth.
^ Increase the pinion selective shim size.

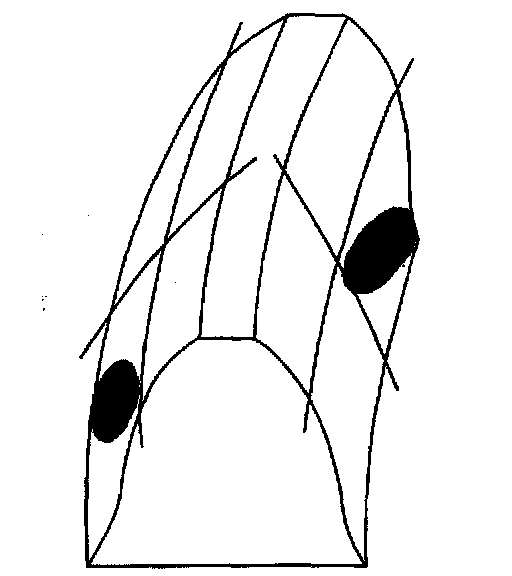

^ An inner end and outer end low contact is caused by a deep pinion depth.
^ Decrease the pinion selective shim.





^ Replace the differential carrier if an offset coast and drive pattern occurs.





^ Inspect the pinion gear for proper seating if an erratic contact patterns exist.
^ Replace the ring and pinion gear set if an erratic contact patterns exist.
^ Replace the differential carrier if an erratic contact patterns exist.





^ Replace the ring and pinion gear set if an insufficient contact patterns exist.
^ Replace the differential case if an insufficient contact patterns exist.
