Steering Column Support Bracket Inspection - Standard Column

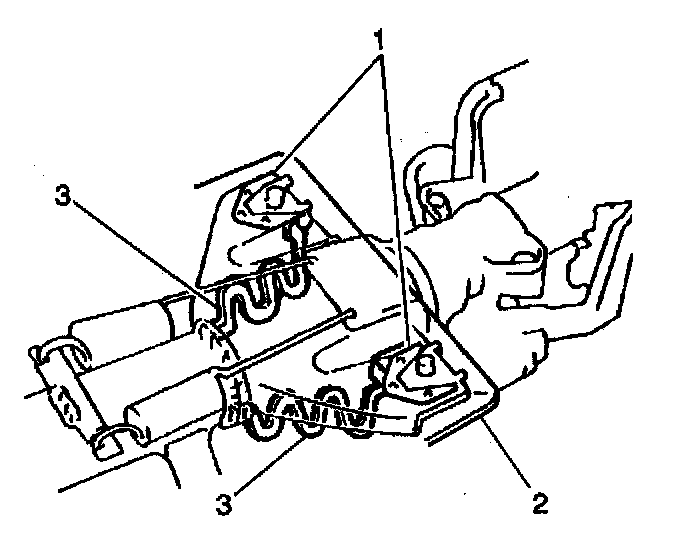

Verify that 2 capsules (1) are securely attached to the steering column bracket (2). Verify that no clearance exists between these capsules and the steering column bracket. If the capsules are loose or if clearance exists, replace the steering column. Inspect 2 plates (3) for any damage. Replace a faulty steering column.
