Home
>>
Chevy Truck
>>
1999
>>
Tracker 4WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Diagrams
>>
Exploded Views
Exploded Views

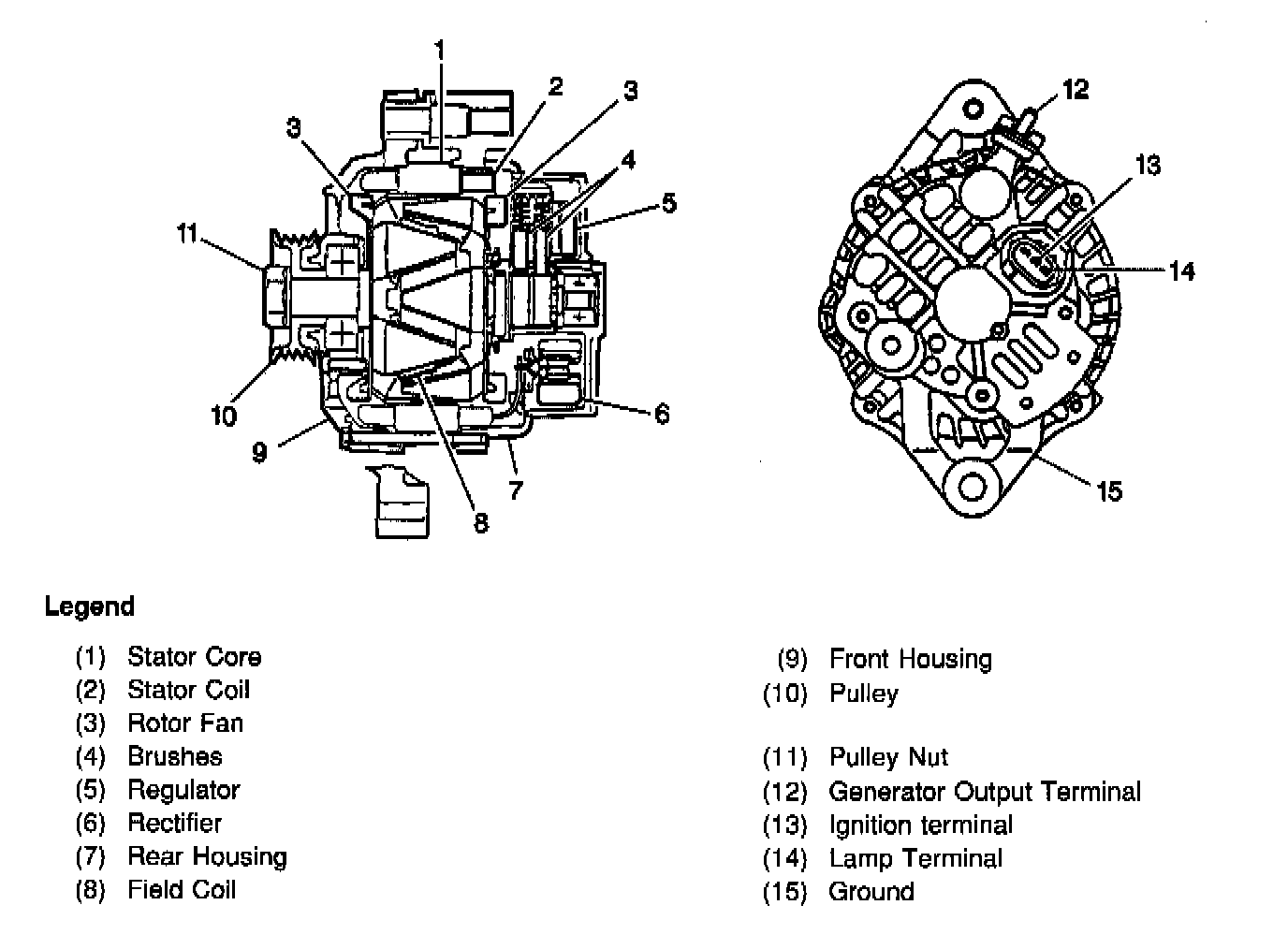

Generator:

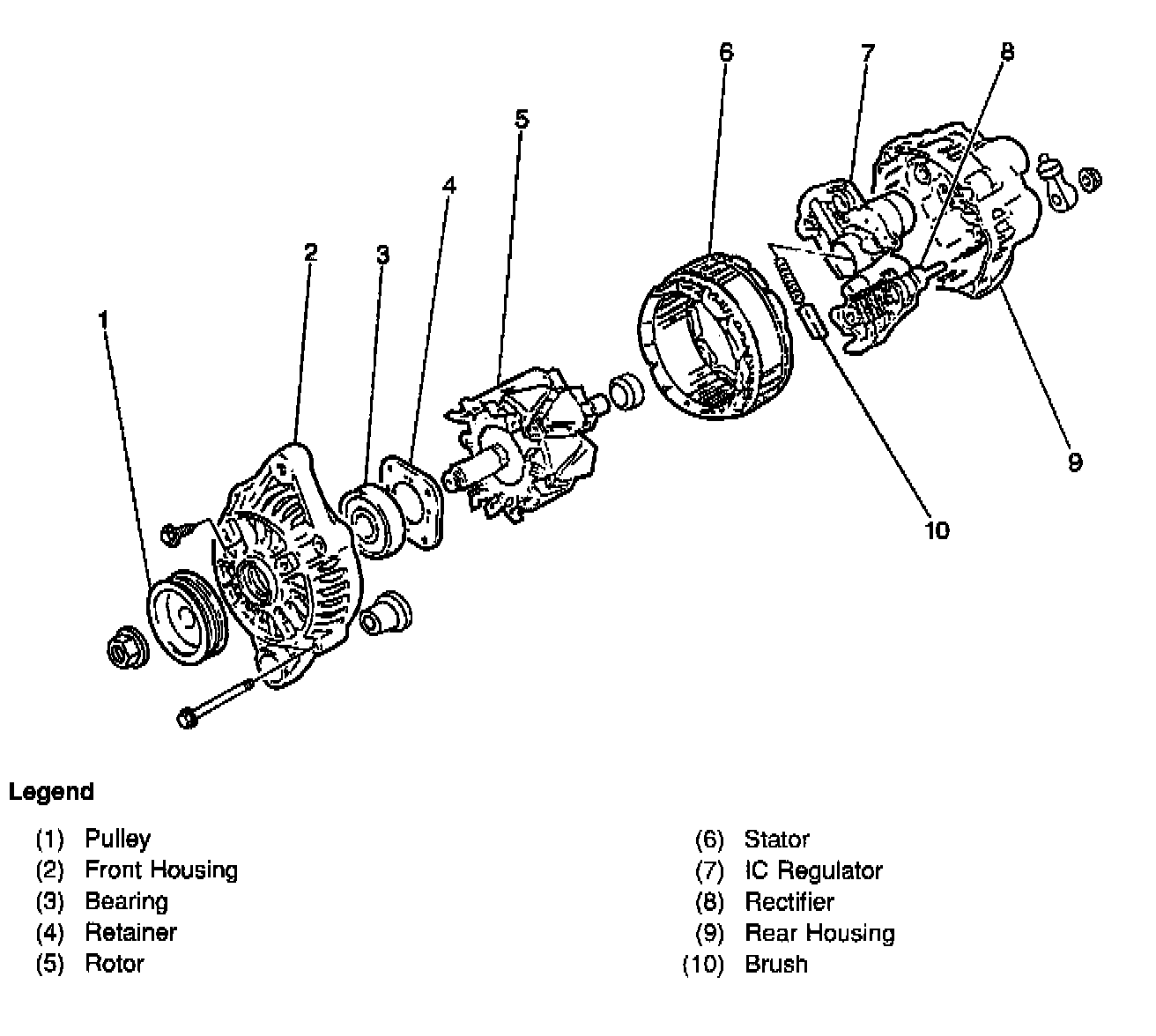

Generator Disassembly:
