Home >> Chevy Truck >> 1999 >> Tracker 4WD L4-2.0L VIN C >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Transmission and Drivetrain >> Sensors and Switches - Transfer Case >> Four Wheel Drive Selector Switch >> Locations >> Four Wheel Drive Low Switch

Four Wheel Drive Low Switch

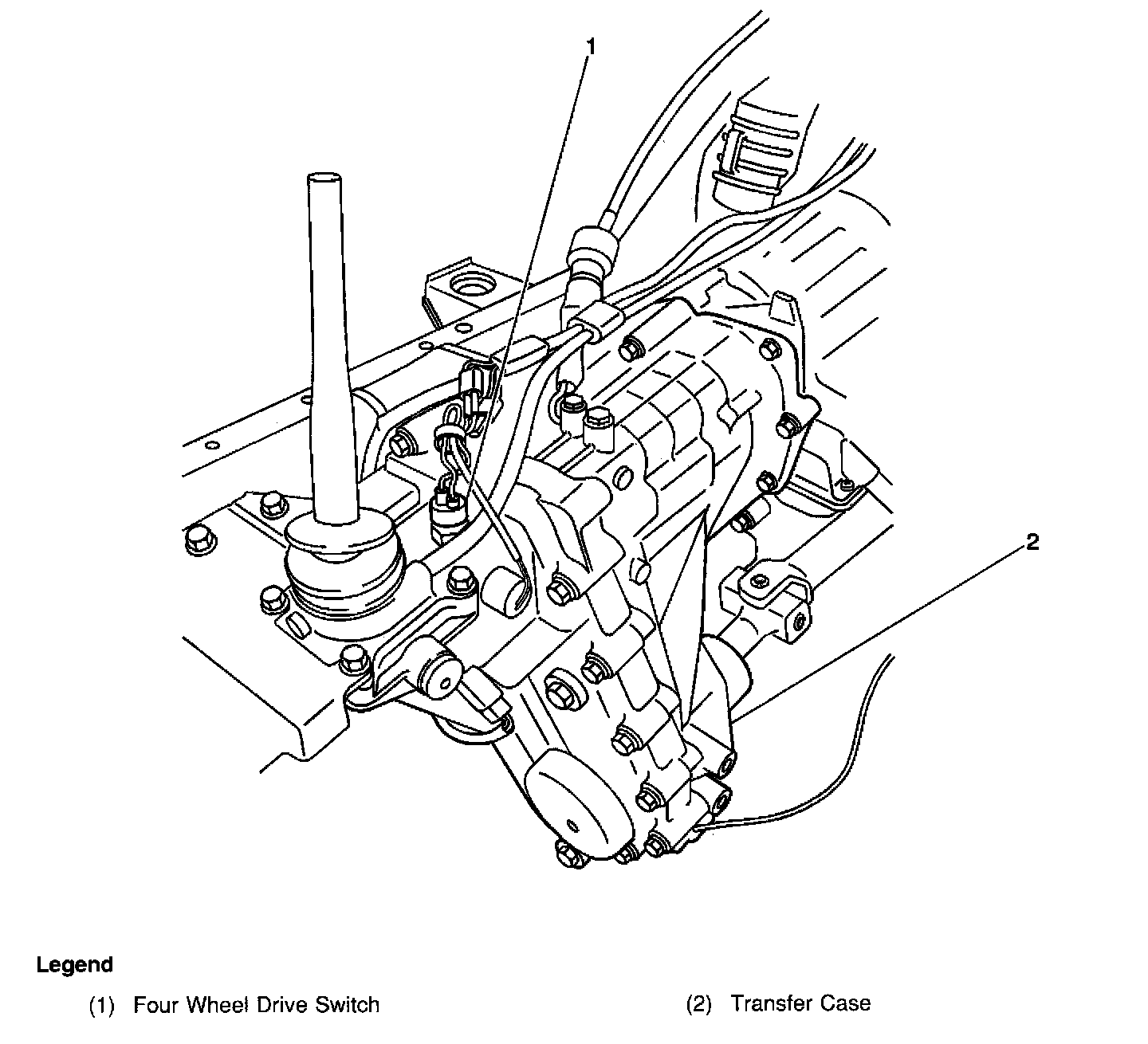

Four Wheel Drive Switch Component View:





Automatic Transmission
Top of the transfer case

Manual Transmission
Top of the transfer case
