Installation Procedure

Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.

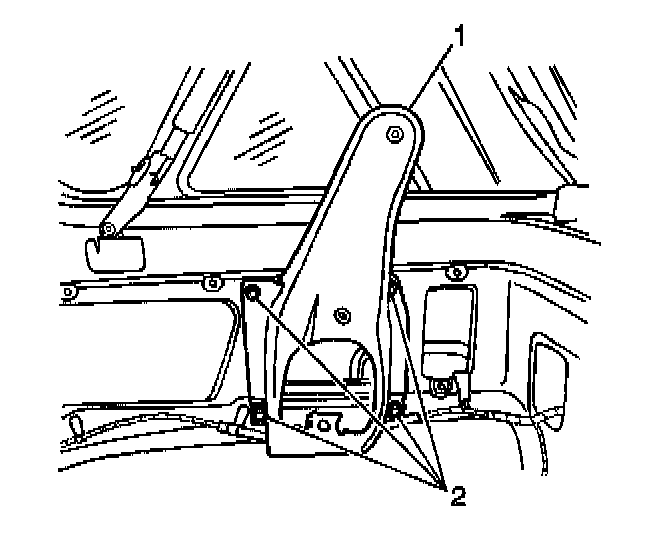

1. install the rear seat shoulder belt guide bracket (1) to the vehicle. Secure the bracket with the 4 bolts (2).

Tighten
Tighten the rear seat shoulder belt guide bracket bolts to 35 N.m (25 lb ft).

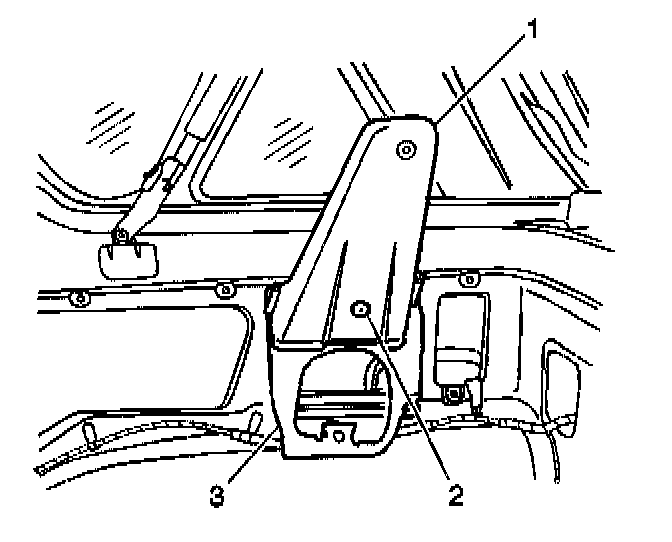

2. Install the rear seat shoulder belt guide bracket cover (1) to the rear seat shoulder guide bracket (3). Secure the bracket cover with the plastic retainer (2).
3. Install the rear seat belt.
