Audible Warning Schematics
>>
Ignition Switch, Tail Relay, and Turn Signal/Headlamp Switch
Ignition Switch, Tail Relay, and Turn Signal/Headlamp Switch

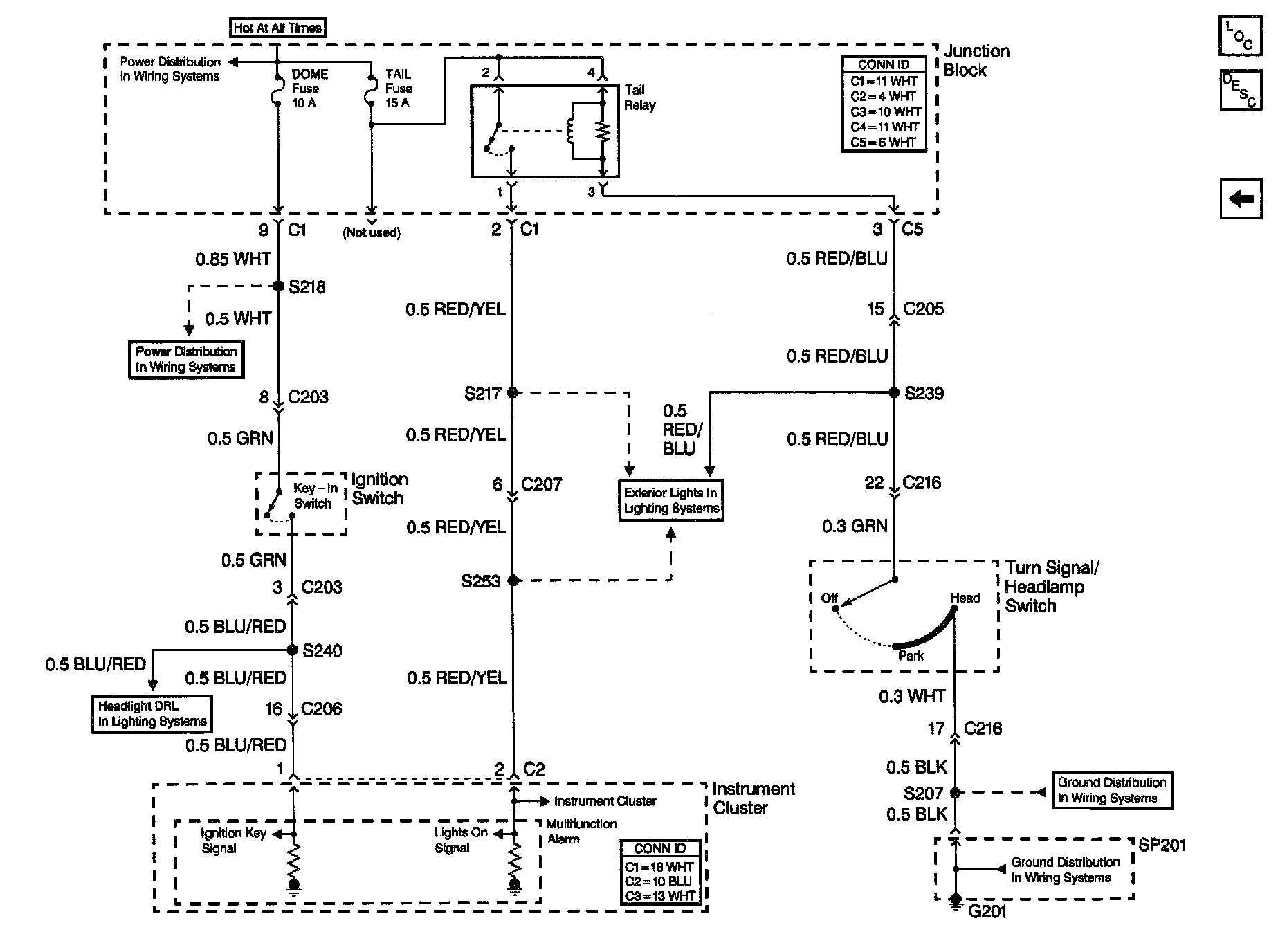

Audible Warnings Schematics: Ignition Switch, Tail Relay, And Turn Signal/Headlamp Switch:
