Starting and Charging Systems

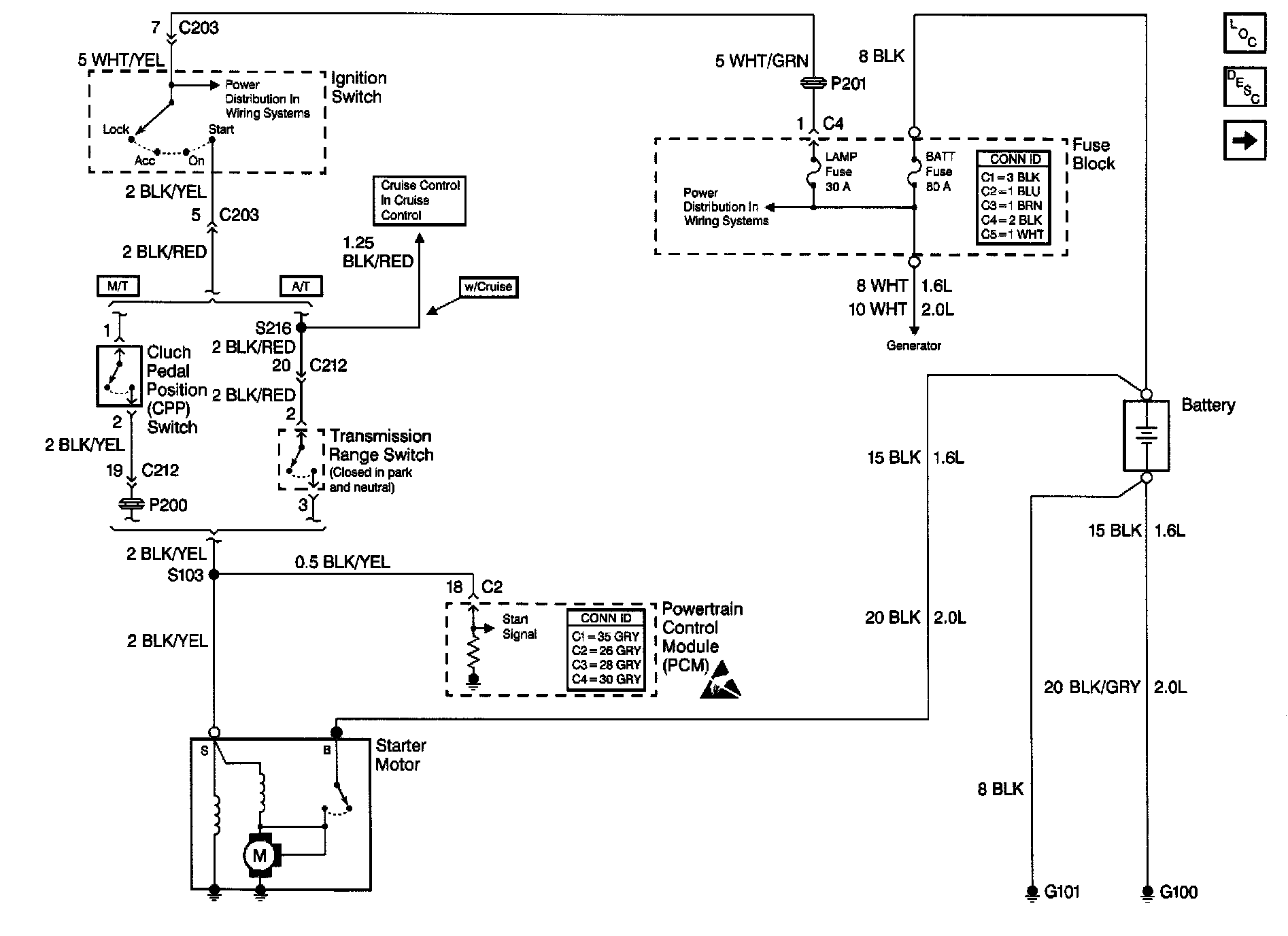

Starting And Charging Schematics : Starting System:

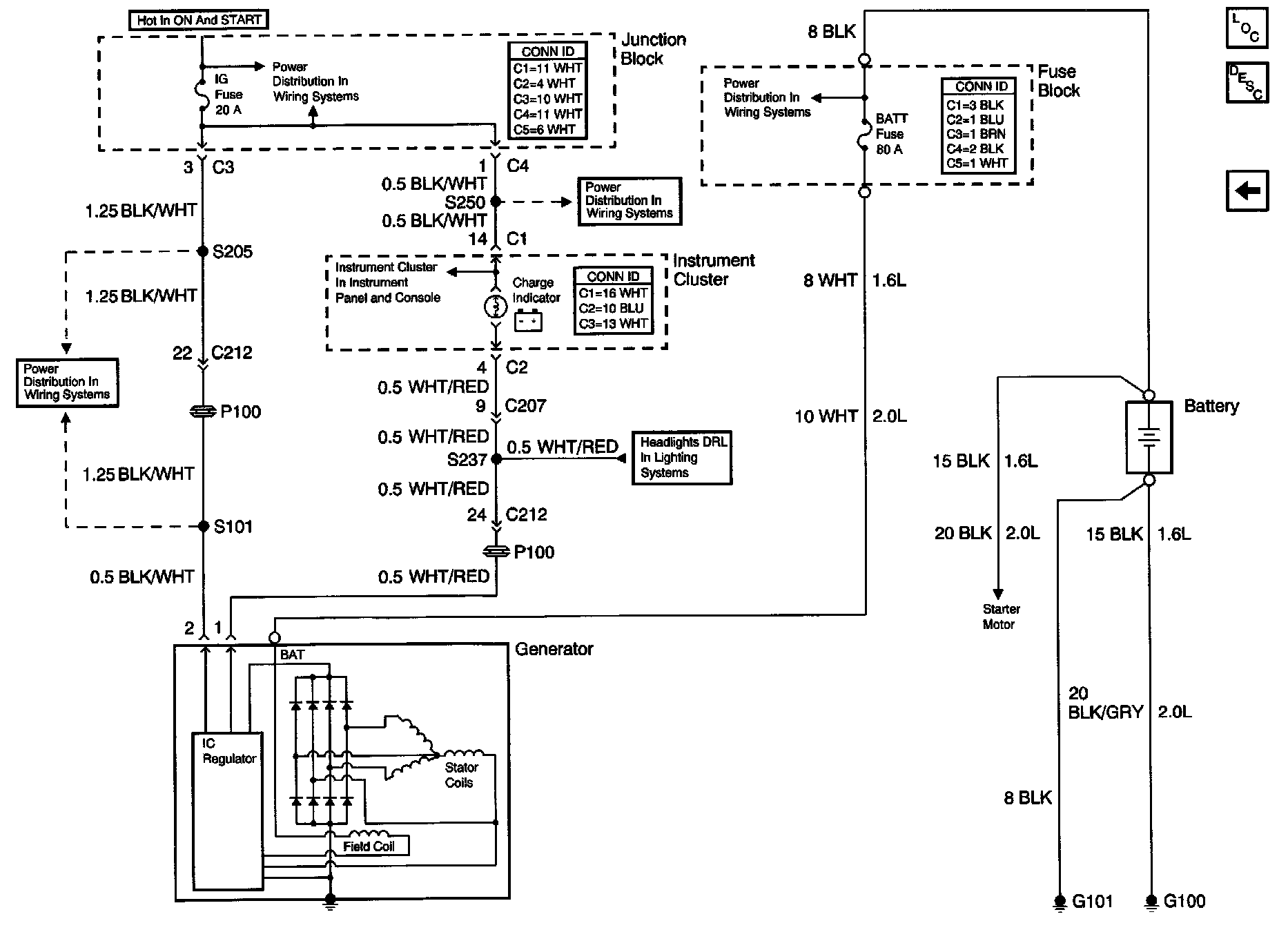

Starting And Charging Schematics : Charing System:
